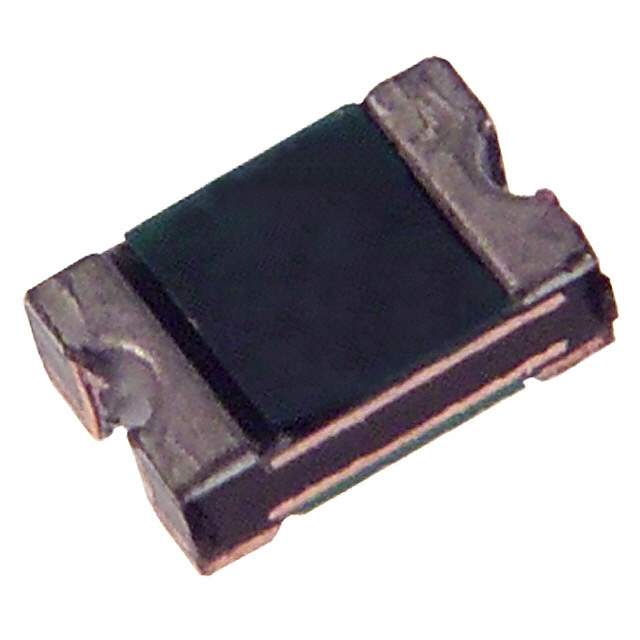

SMD0805P020TS Real Image
Same model may have multiple batches, images only for reference.

SMD0805P020TS

Part No SMD0805P020TS
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description FUSE RESETTABLE 9V 200MA 0805
Datasheet
SMD0805P020TS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Polymeric
Voltage - Max 9V
Current - Max 40A
Current - Hold (Ih) (Max) 200mA
Current - Trip (It) 500mA
Time to Trip 20ms
Resistance - Initial (Ri) (Min) 650 mOhm
Resistance - Post Trip (R1) (Max) 3.5 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.083" L x 0.053" W (2.10mm x 1.35mm)
Thickness (Max) 0.039" (1.00mm)
Approvals cURus, TUV
Win Source Part Number 047019-SMD0805P020TS
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SMD0805P020TS CAD Model

Description

The SMD0805P020TS is a polymeric type circuit protection manufactured by Littelfuse Inc.

  • Win Source Part Number: 047019
  • Status: obsolete (EOL)
  • Mounting: surface mount device (SMD)
  • Packaging Type: reel - TR
  • Thickness (max): 0.039 inches (1.00mm)
  • Voltage-max: 9V
  • Current-max: 40A
  • Current-hold (Ih) (max): 200mA
  • Current-trip (It): 500mA
  • Time to trip: 20ms
  • Approvals: approved by cURus and TUV
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.083 inches L x 0.053 inches W (2.10mm x 1.35mm)
  • Initial Resistance (Ri) (min): 650 mOhm
  • Post-trip Resistance (R1) (max): 3.5 Ohm
