Same model may have multiple batches, images only for reference.

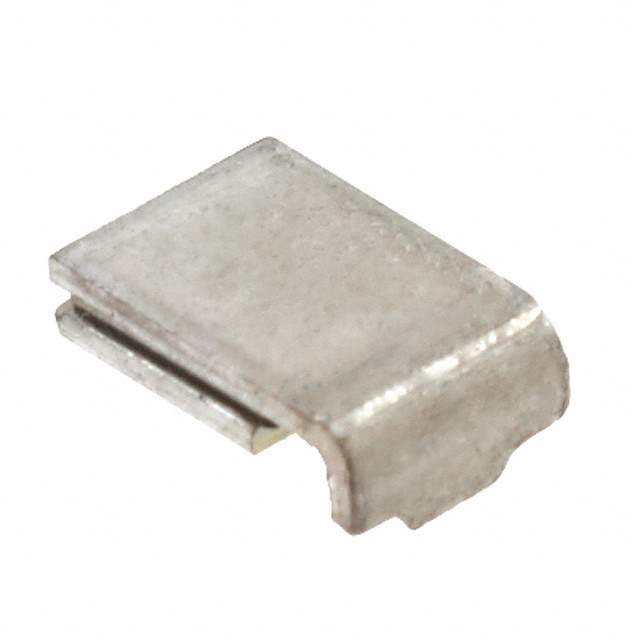

SMDH120-2 Real Image
Same model may have multiple batches, images only for reference.

SMDH120-2

Part No SMDH120-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC 1.2A SMD
Datasheet
SMDH120-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 16V
Current - Max 50A
Current - Hold (Ih) (Max) 1.2A
Current - Trip (It) 2.3A
Time to Trip 2s
Resistance - Initial (Ri) (Min) 150 mOhm
Mounting SMD (SMT)
Dimension 0.290" L x 0.202" W (7.36mm x 5.12mm)
Thickness (Max) 0.118" (3.00mm)
Approvals CSA, TUV, UL
Win Source Part Number 102439-SMDH120-2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SMDH120-2 CAD Model

Description

The Littelfuse Inc. 102439-SMDH120-2 is a surface mount device (SMD) designed for circuit protection.

  • Device Type: Polymeric
  • Approvals: CSA, TUV, UL
  • Maximum Voltage: 16V
  • Maximum Current: 50A
  • Current-hold (Ih) (max): 1.2A
  • Current-trip (It): 2.3A
  • Time to Trip: 2s
  • Packaging: Reel
  • Popularity: Medium
  • Supply and Demand: Balanced
  • Thickness (max): 0.118" (3.00mm)
  • Dimension: 0.290" L x 0.202" W (7.36mm x 5.12mm)
