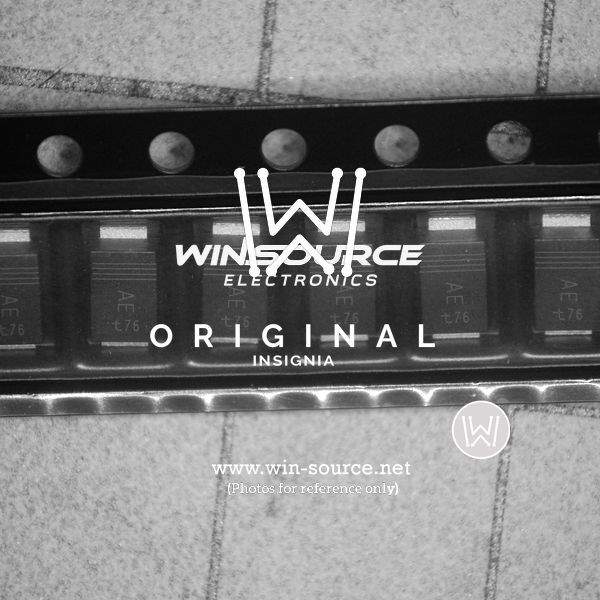

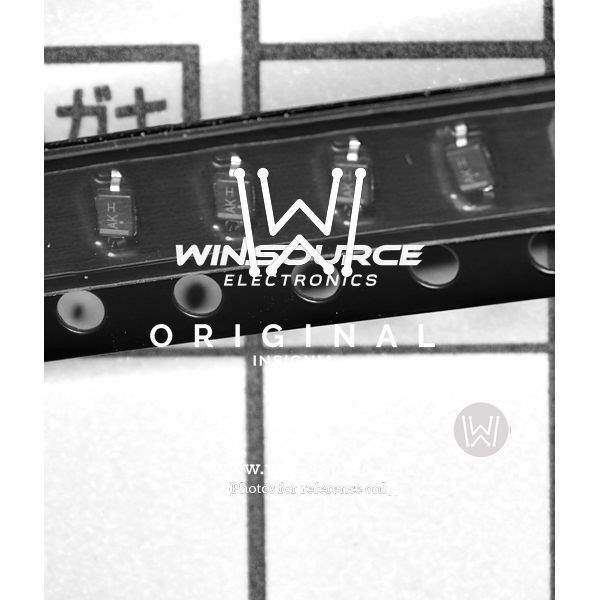

Same model may have multiple batches, images only for reference.

SMF5.0A

Name: SMF5.0A
Brand: Littelfuse Inc.
SKU: 328945
Availability: InStock
Rating: 4.91 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SMF5.0A
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 5VWM 9.2VC SOD123
Datasheet	SMF5.0A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Packaging	Reel - TR
Status	Active
Type	Zener
Unidirectional Channels	1
STAND-OFF Voltage (Vwm)	5V
Minimum Breakdown Voltage	6.4V
Max Clamping Voltage	9.2V
Peak Pulse Current(Ippm)	21.7A
Power Dissipation - Pd	200W
Applications	General Purpose
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	SOD-123F
Win Source Part Number	029358-SMF5.0A
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
Voltage - Reverse Standoff (Typ)	5V
Voltage - Breakdown (Min)	6.4V
Voltage - Clamping (Max) @ Ipp	9.2V
Current - Peak Pulse (10/1000µs)	21.7A
Power - Peak Pulse	200W
Power Line Protection	No
Operating Temperature	-55°C ~ 150°C (TJ)
Grade	-
Mounting Type	Surface Mount
Package / Case	SOD-123
Supplier Device Package	SOD-123
Ultra Librarian 3D Model	Ultra Librarian SMF5.0A CAD Model

Alternative Products

Description

The Littelfuse Inc. SMF5.0A is a zener diode that belongs to the Circuit Protection category.

Supply and Demand Status: Limited
Application: general-purpose applications such as voltage regulation, surge protection, and ESD protection
Breakdown Voltage: 5V
Peak Pulse Current: 21.7A
