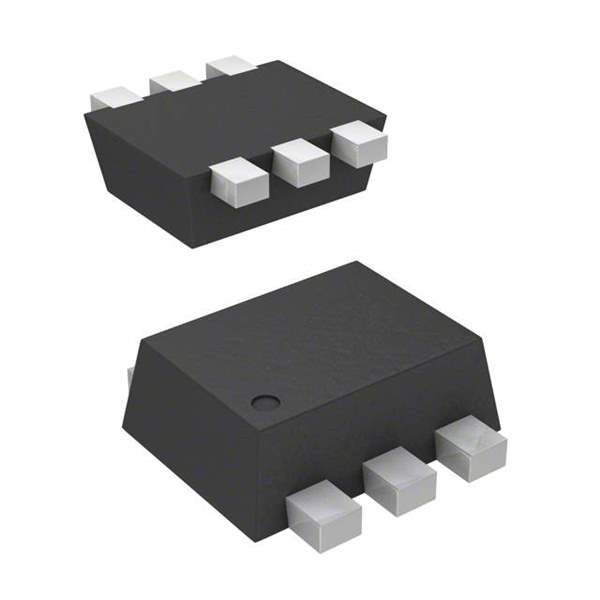

SP3003-04XTG Real Image SP3003-04XTG real image6365
SP3003-04XTG Real Image SP3003-04XTG real image6365
Same model may have multiple batches, images only for reference.

SP3003-04XTG

Part No SP3003-04XTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 6VWM 15VC SOT563
Datasheet
SP3003-04XTG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 6V (Max)
Max Clamping Voltage 15V
Peak Pulse Current(Ippm) 2.5A (8/20μs)
Power Line Protection Yes
Applications General Purpose
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-563
Win Source Part Number 047144-SP3003-04XTG
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SP3003-04XTG CAD Model

Description

The Littelfuse Inc. SP3003-04XTG steering (rail to rail) is a high-quality component designed for use in electronic devices.

  • Win Source Part Number: 047144-SP3003-04XTG
  • Category: circuit protection
  • Application: general-purpose
  • Mounting: SMD (SMT)
  • Channels: 4 unidirectional
  • Protection: power line
  • Status: active
  • Temperature Range: -40°C to 125°C (TJ)
  • Case/Package: SOT-563
  • STAND-OFF Voltage (Vwm): 6V (Max)
  • Clamping Voltage: 15V max
  • Peak Pulse Current (Ippm): 2.5A (8/20μs)
  • Supply and Demand Status: limited
