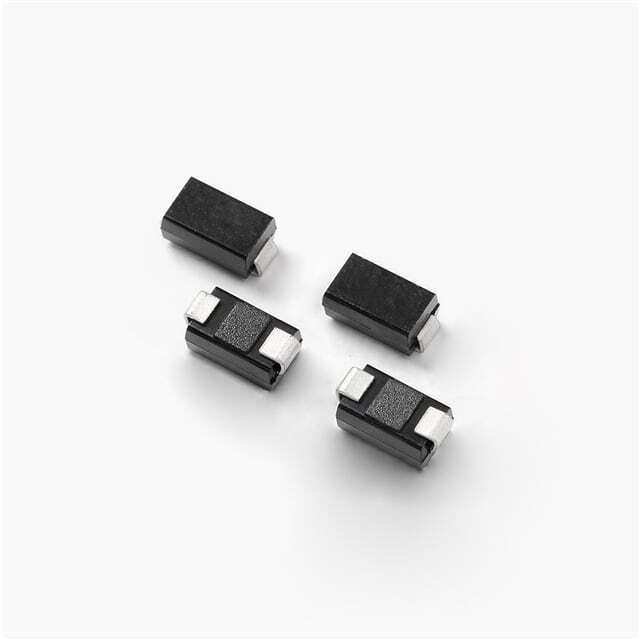

Same model may have multiple batches, images only for reference.
SZ1SMA100AT3G
Same model may have multiple batches, images only for reference.

SZ1SMA100AT3G

Part No SZ1SMA100AT3G
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 100VWM 162VC SMA
Datasheet
SZ1SMA100AT3G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Littelfuse Inc.
Series Automotive, AEC-Q101, SZ1SMA
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 100V
Voltage - Breakdown (Min) 111V
Voltage - Clamping (Max) @ Ipp 162V
Current - Peak Pulse (10/1000µs) 2.5A
Power - Peak Pulse 400W
Power Line Protection No
Applications Automotive
Capacitance @ Frequency 162pF @ 1MHz
Temperature Range - Operating -65°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package DO-214AC (SMA)
Base Product Number 1SMA
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 854381-SZ1SMA100AT3G
Ultra Librarian 3D Model Ultra Librarian SZ1SMA100AT3G CAD Model

Description

The 854381-SZ1SMA100AT3G is an automotive transient voltage suppressor (TVS) diode from Littelfuse Inc.

  • Series: SZ1SMA
  • Application: Automotive
  • Package: Surface Mount (DO-214AC, SMA)
  • Packaging: Tape and Reel
  • Standard Package Quantity: 5,000 pcs
  • Type: Unidirectional
  • Reverse Standoff Voltage: 100V
  • Breakdown Voltage: 111V
  • Clamping Voltage: 162V @ Peak Pulse Current (Ipp)
  • Power Rating: 400W
  • Capacitance: 162pF @ 1MHz
  • Peak Pulse Current Rating: 2.5A (10/1000µs pulse)
  • Operating Temperature Range: -65°C to 150°C
  • Status: Active
  • REACH Status: Not affected by REACH regulations
  • Manufacturer: Littelfuse Inc.
