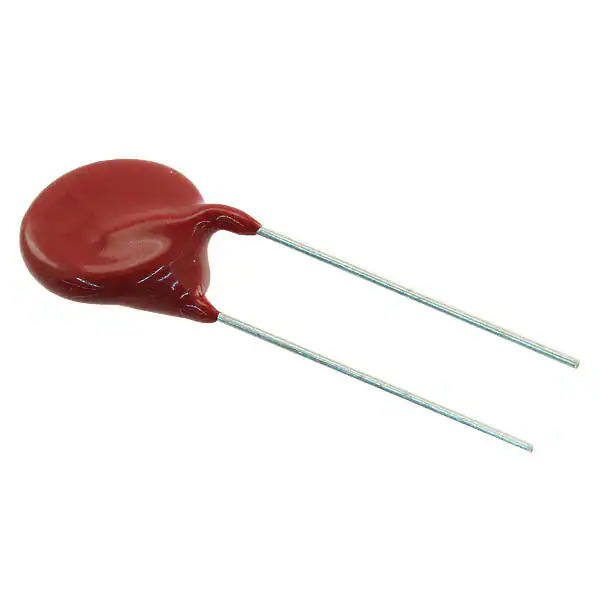

TMOV14RP420EL2T7 Littelfuse Inc.
Same model may have multiple batches, images only for reference.

TMOV14RP420EL2T7

Part No TMOV14RP420EL2T7
Manufacturer Littelfuse Inc.
Catalog TVS - Varistors, MOVs
Description VARISTOR 680V 6KA DISC 14MM / 680 V 6 kA Varistor 1 Circuit Through Hole Disc 14mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Varistors, MOVs
Mfr Littelfuse Inc.
Series TMOV®
Package Tape & Reel (TR)
Product Status Active
Maximum AC Volts 420 V
Maximum DC Volts 560 V
Varistor Voltage (Min) 612 V
Varistor Voltage (Typ) 680 V
Varistor Voltage (Max) 748 V
Current - Surge 6 kA
Energy 160J
Number of Circuits 1
Capacitance @ Frequency 300 pF @ 1 MHz
Temperature Range - Operating -55°C ~ 85°C (TA)
Features Thermally Protected
Mounting Type Through Hole
Package / Case Disc 14mm
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 1361151-TMOV14RP420EL2T7
Ultra Librarian 3D Model Ultra Librarian TMOV14RP420EL2T7 CAD Model

Description

The 1361151-TMOV14RP420EL2T7 is a varistor transient voltage suppressor (TVS) component known as TMOV® manufactured by Littelfuse Inc.

  • Package: Tape & Reel (TR)
  • Package/Case: Disc 14mm
  • Mounting Type: Through-Hole
  • Operating Temperature: -55°C to 85°C
  • Capacitance: 300 pF @ 1 MHz
  • Maximum AC Volts: 420V
  • Maximum DC Volts: 560V
  • Varistor Voltage: 612V to 748V
  • Current Surge: 6kA
  • Energy Rating: 160J
