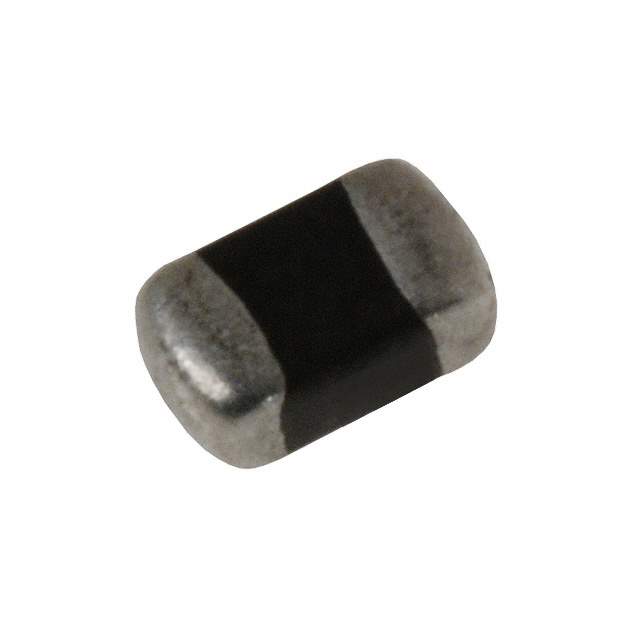

V5.5MLA0805NH Real Image
Same model may have multiple batches, images only for reference.

V5.5MLA0805NH

Part No V5.5MLA0805NH
Manufacturer Littelfuse Inc.
Catalog TVS - Varistors, MOVs
Description VARISTOR 8.2V 120A 0805 / 8.2 V 120 A Varistor 1 Circuit Surface Mount, MLCV 0805 (2012 Metric)
Datasheet
V5.5MLA0805NH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Mfr Littelfuse Inc.
Series MLA
Package Tape & Reel
Maximum AC Volts 4 V
Maximum DC Volts 5.5 V
Varistor Voltage (Min) 7.1 V
Varistor Voltage (Typ) 8.2 V
Varistor Voltage (Max) 9.3 V
Current - Surge 120 A
Energy 0.3J
Number of Circuits 1
Capacitance @ Frequency 1200 pF @ 1 MHz
Temperature Range - Operating -55°C ~ 125°C (TA)
Mounting Type Surface Mount, MLCV
Package / Case 0805 (2012 Metric)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Other Names V5.5MLA0805NH-ND,V55MLA0805NH,F3814DKR,F3814CT,F3814TR
Standard Package 2,500
Win Source Part Number 1103644-V5.5MLA0805NH
Ultra Librarian 3D Model Ultra Librarian V5.5MLA0805NH CAD Model

Description

The V5.5MLA0805NH from Littelfuse Inc. is a surface mount varistor with a capacitance of 1200 pF at 1 MHz.

  • Manufacturer: Littelfuse Inc.
  • Mounting Type: Surface Mount
  • Capacitance: 1200 pF @ 1 MHz
  • Varistor Voltage Range: 7.1V to 9.3V
  • Surge Current: 120A
  • Maximum AC Voltage: 4V
  • Maximum DC Voltage: 5.5V
  • Energy: 0.3J
  • Package: 0805 (2012 Metric)
  • MSL Level: 1 (unlimited)
  • Series: MLA
  • Packaging: Tape and Reel
  • Standard Package: 2,500
