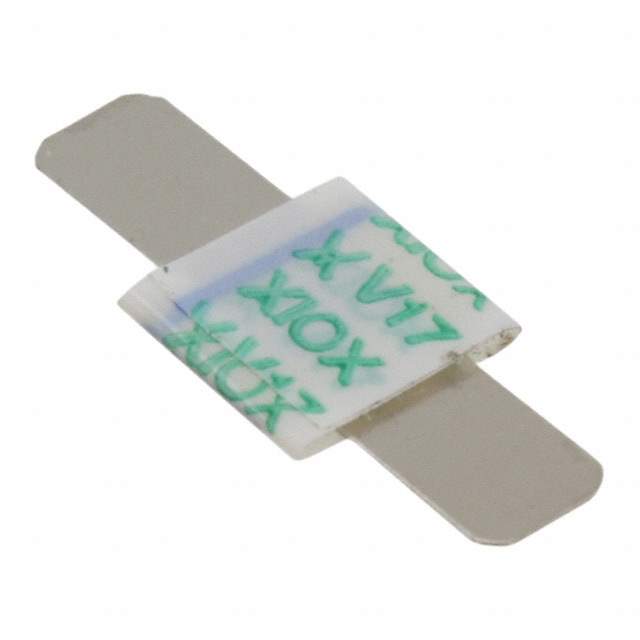

Same model may have multiple batches, images only for reference.

VTP170F

Name: VTP170F
Brand: Littelfuse Inc.
SKU: 799250
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	VTP170F
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	POLYSWITCH PTC RESET 1.7A STRAP / PTC Resettable Fuse 1.7A(hold) 3.4A(trip) 16VDC 100A 1.4W 5s 0.03Ohm SMD Solder Pad 5.1 X 7.4 X 0.8mm Bag
Datasheet	VTP170F Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Series	PolySwitch, VTP
Packaging	Bulk
Type	Polymeric
Voltage - Max	16V
Current - Max	100A
Current - Hold (Ih) (Maximum)	1.7A
Current - Trip (It)	3.4A
Time to Trip	5s
Resistance - Initial (Ri) (Minimum)	30 mOhm
Resistance - Post Trip (R1) (Maximum)	105 mOhm
Operating Temperature Range	-40°C ~ 85°C
Mounting	User Defined
Package	Strap
Dimension	0.648" L x 0.283" W (16.45mm x 7.20mm)
Thickness (Maximum)	0.032" (0.80mm)
Approvals	CSA, TUV, UL
Win Source Part Number	799250-VTP170F
Popularity	Medium
Supply and Demand Status	Limited
Introduction Date	November 09, 2015
ECCN	EAR99
Country of Origin	China
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian VTP170F CAD Model

Alternative Products

Description

The VTP170F from Littelfuse Inc. is a PolySwitch device that is designed to provide overcurrent protection in electronic circuits.

Maximum Voltage Rating: 16V
Maximum Current Rating: 100A
Current Trip Rating: 3.4A
Time to Trip: 5s
Current Hold Rating: 1.7A
Initial Resistance: 30 mOhm
Post-Trip Resistance: 105 mOhm
Packaging: Bulk
Package Type: Strap
Approvals: CSA, TUV, UL
Mounting: User-defined
Dimensions: 0.648" L x 0.283" W (16.45mm x 7.20mm)
