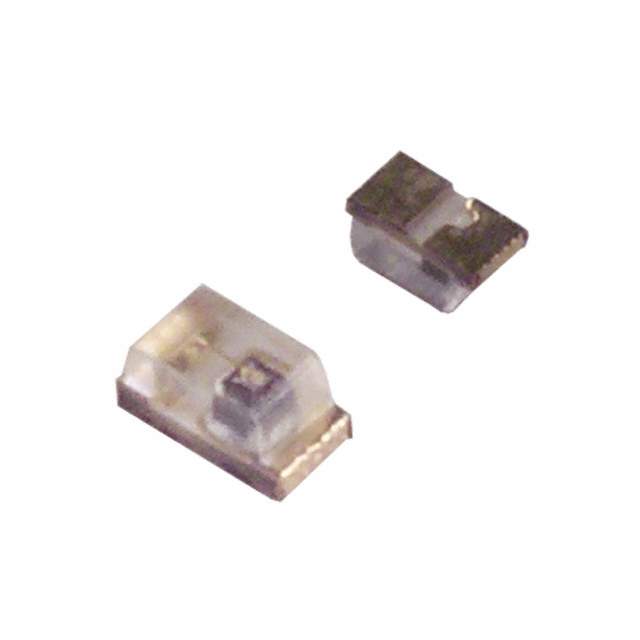

SML-LX0402SOC-TR Real Image
Same model may have multiple batches, images only for reference.

SML-LX0402SOC-TR

Part No SML-LX0402SOC-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED ORANGE CLEAR SMD / Orange LED Indication - Discrete 2V 0402 (1005 Metric)
Datasheet
SML-LX0402SOC-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Manufacturer Lumex Opto/Components Inc.
Packaging Reel - TR
Color Orange
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 120mcd
Lens Style Rectangle with Flat Top
Lens Size 0.80mm x 0.50mm
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 120°
Mounting Surface Mount
Wavelength - Peak 610nm
Case / Package 0402 (1005 Metric)
Size / Dimension 1.00mm L x 0.50mm W
Height (Max) 0.50mm
Base Product Number SML-LX0402
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Part Number SML-LX0402SOC-ND,67-1879-2-NDR,67-1879-1-NDR,SML-LX0402SOC,SMLLX0402SOCTR,Q1568379,67-1879-6,67-1879-1,67-1879-2
Standard Package 2,000
Win Source Part Number 1331888-SML-LX0402SOC-TR
Ultra Librarian 3D Model Ultra Librarian SML-LX0402SOC-TR CAD Model

Description

Lumex Opto/Components Inc. 1331888-SML-LX0402SOC-TR is an orange LED designed for discrete LED indication.

  • Color: Orange
  • Packaging: Reel
  • Standard Package: 2,000
  • Viewing Angle: 120 degrees
  • Millicandela Rating: 120mcd
  • Supply Voltage: 2V
  • Current: 20mA
  • Mounting: Surface mount
  • Configuration: Standard
  • Supply and Demand Status: Balanced
  • RoHS3 Compliant: Yes
