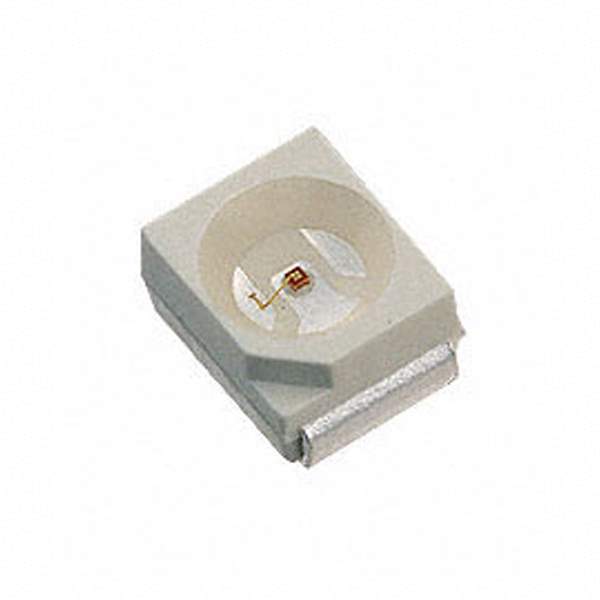

SML-LX2832SISUGSBC

Part No SML-LX2832SISUGSBC
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED RGB CLEAR 2832 SMD / Red, Green, Blue (RGB) LED Indication - Discrete 2V Red, 2.2V Green, 3.5V Blue 4-SMD, J-Lead
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Product Status Obsolete
Color Red, Green, Blue (RGB)
Configuration Common Anode
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 80mcd Red, 60mcd Green, 60mcd Blue
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Voltage - Forward (Vf) (Typ) 2V Red, 2.2V Green, 3.5V Blue
Current - Test 20mA Red, 20mA Green, 20mA Blue
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Peak 636nm Red, 574nm Green, 430nm Blue
Package / Case 4-SMD, J-Lead
Supplier Device Package 2832
Dimension 3.20mm L x 2.70mm W
Height (Max) 1.87mm
Other Names SMLLX2832SISUGSBC,67-1820-2,67-1820-1R,67-1820-1,67-1820-6,SML-LX2832SRSUGUSB,67-1820-2R,Q2341938
Standard Package 1,500
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241820-SML-LX2832SISUGSBC
Ultra Librarian 3D Model Ultra Librarian SML-LX2832SISUGSBC CAD Model

Description

The SML-LX2832SISUGSBC LED Indication is a RGB (Red, Green, Blue) color LED component from Lumex Opto/Components Inc.

  • Mounting Type: Surface mount device (SMD)
  • Package: Tape & Reel
  • Package Quantity: 1,500 units
  • Viewing Angle: 120 degrees
  • Millicandela Rating (Red): 80mcd
  • Millicandela Rating (Green): 60mcd
  • Millicandela Rating (Blue): 60mcd
  • Forward Voltage (Vf) (Red): 2V @ 20mA
  • Forward Voltage (Vf) (Green): 2.2V @ 20mA
  • Forward Voltage (Vf) (Blue): 3.5V @ 20mA
  • Peak Wavelength (Red): 636nm
  • Peak Wavelength (Green): 574nm
  • Peak Wavelength (Blue): 430nm
  • Height: 1.87mm
  • Package: 4-SMD, J-Lead
  • Lens Style: Round with a flat top
  • Lens Size: 2.40mm diameter
  • Ideal for: Use in various applications that require an RGB color LED component
