Same model may have multiple batches, images only for reference.

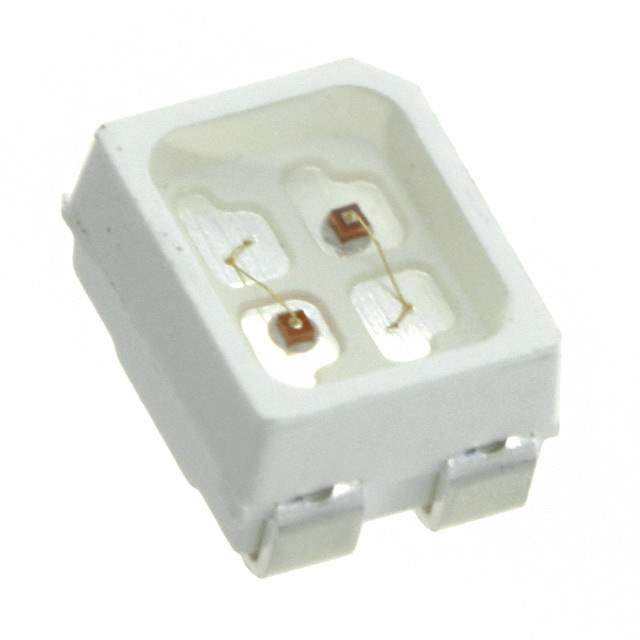

SML-LX2835IGC-TR Real Image
Same model may have multiple batches, images only for reference.

SML-LX2835IGC-TR

Part No SML-LX2835IGC-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED GREEN/RED CLEAR 2835 SMD / Green, Red LED Indication - Discrete 2.2V Green, 2V Red 4-SMD, J-Lead
Datasheet
SML-LX2835IGC-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Color Green, Red
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 25mcd Green, 25mcd Red
Lens Style Rectangle with Flat Top
Lens Size 2.64mm x 2.14mm
Voltage - Forward (Vf) (Typ) 2.2V Green, 2V Red
Current - Test 20mA Green, 20mA Red
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Peak 565nm Green, 635nm Red
Package / Case 4-SMD, J-Lead
Supplier Device Package 2835
Dimension 3.20mm L x 2.70mm W
Height (Max) 1.80mm
Base Product Number SML-LX2835
Other Names 67-2128-1,67-2128-2,SMLLX2835IGCTR,67-2128-6
Standard Package 2,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241896-SML-LX2835IGC-TR
Ultra Librarian 3D Model Ultra Librarian SML-LX2835IGC-TR CAD Model

Description

The Lumex Opto/Components Inc. SML-LX2835IGC-TR is a green and red LED indication discrete product.

  • Viewing Angle: 120°
  • Millicandela Rating: 25mcd for both colors
  • Voltage-Forward (Vf): 2.2V for green and 2V for red
  • Current-Test: 20mA for both colors
  • Height (max): 1.80mm
  • Package/Case: 4-SMD, J-Lead
  • Supplier Device Package: 2835
  • Dimension: 3.20mm L x 2.70mm W
  • Good choice for: Those who need a reliable LED indication discrete product
