Same model may have multiple batches, images only for reference.

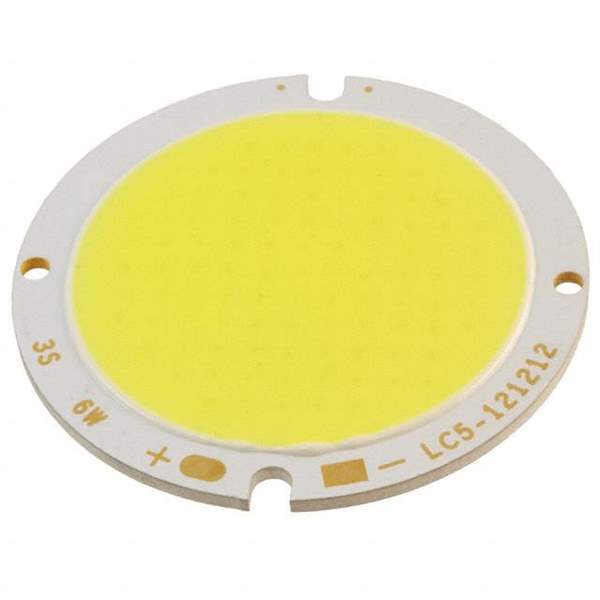

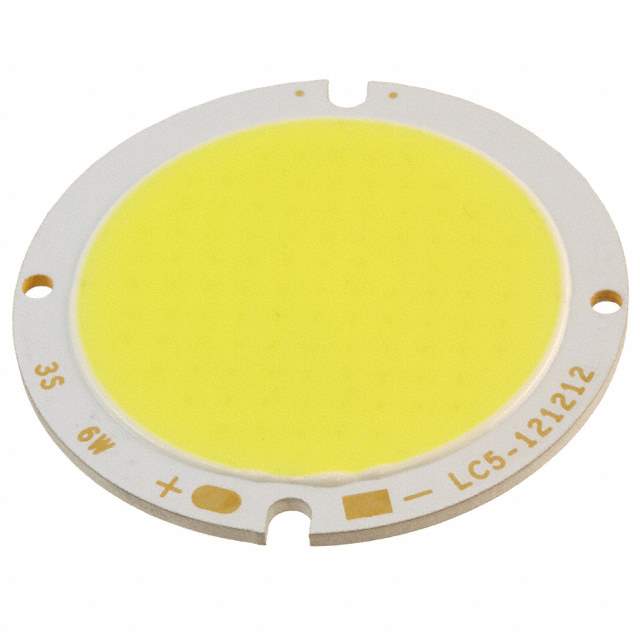

SML-LX5026UWC-WB6 Real Image
Same model may have multiple batches, images only for reference.

SML-LX5026UWC-WB6

Part No SML-LX5026UWC-WB6
Manufacturer Lumex Opto/Components Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB COOL WHITE ROUND / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Cool Round
Datasheet
SML-LX5026UWC-WB6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Lumex Opto/Components Inc.
Package Tray
Type Chip On Board (COB)
Color White, Cool
CCT (K) 6500K
Configuration Round
Luminous Flux @ Current/Temperature 560lm (Typ)
Current - Test 660mA
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 10.2V
Lumens/Watt @ Current - Test 83 lm/W
Current - Max 700mA
Viewing Angle 170°
Dimension 50.00mm Dia
Height 2.80mm
Light Emitting Surface (LES) 40.00mm Dia
Lens Type Flat
Base Product Number SML-LX5026
Other Names SMLLX5026UWCWB6,67-2177
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241636-SML-LX5026UWC-WB6
Ultra Librarian 3D Model Ultra Librarian SML-LX5026UWC-WB6 CAD Model

Description

The SML-LX5026UWC-WB6 is a Chip On Board (COB) type white cool LED module, manufactured by Lumex Opto/Components Inc.

  • Configuration: Round
  • Viewing Angle: 170 degrees
  • Forward Voltage: 10.2V
  • Maximum Current: 700mA
  • Package: Tray
  • Standard Package: 100
  • CCT (K): 6500K
  • Luminous Flux: 560lm (Typ) @ a current of 660mA and temperature of 25 degrees Celsius
  • Height: 2.80mm
  • Light Emitting Surface (LES) Diameter: 40.00mm
  • Dimension Diameter: 50.00mm
  • Ideal for: LED lighting - COBs, Engines, Modules, Strips
