Same model may have multiple batches, images only for reference.

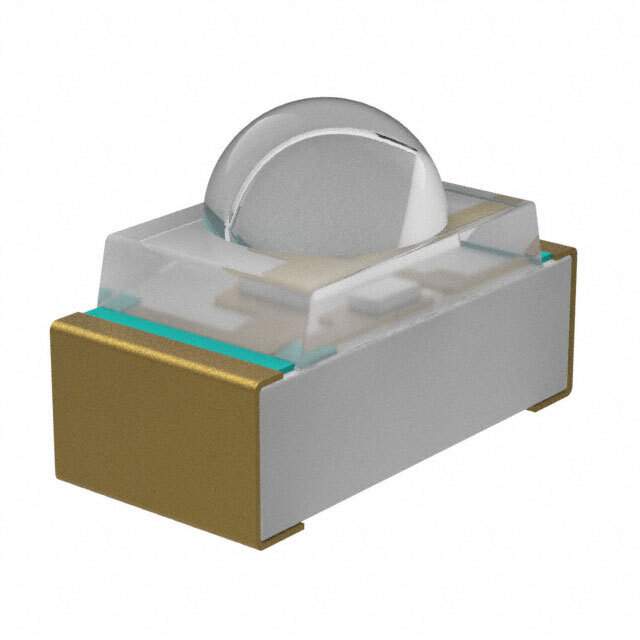

SML-LXIL0603SIC-TR Real Image
Same model may have multiple batches, images only for reference.

SML-LXIL0603SIC-TR

Part No SML-LXIL0603SIC-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description 1.64X0.84X1.15MM TOP VIEW SMT LE / Red LED Indication - Discrete 2.1V 0603 (1608 Metric)
Datasheet
SML-LXIL0603SIC-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Color Red
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 1600mcd
Lens Style Round with Domed Top
Lens Size 0.79mm Dia
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Viewing Angle 75°
Mounting SMD (SMT)
Wavelength - Peak 630nm
Package / Case 0603 (1608 Metric)
Dimension 1.64mm L x 0.84mm W
Height (Max) 1.40mm
Base Product Number SML-LXIL0603
Other Names 67-2333-1,67-2333-2,67-2333-6
Standard Package 3,000
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241865-SML-LXIL0603SIC-TR
Ultra Librarian 3D Model Ultra Librarian SML-LXIL0603SIC-TR CAD Model

Description

The Lumex Opto/Components Inc. LED Indication - Discrete series SML-LXIL0603SIC-TR is a red color LED with a tape and reel package.

  • Standard Package: 3,000
  • Mounting: SMD (SMT)
  • Viewing Angle: 75 degrees
  • Lens Transparency: Clear colorless lens transparency
  • Millicandela Rating: 1600mcd
  • Voltage - Forward (Vf) (Typ): 2.1V
  • Current - Test: 20mA
  • Wavelength - Peak: 630nm
  • Height (Max): 1.40mm
  • Package/Case: 0603 (1608 Metric)
  • Supplier Device Package: -
  • Dimension: 1.64mm L x 0.84mm W
  • Lens Style: Round with a domed top
  • Lens Size: 0.79mm Dia
  • MSL Level: 2 (1 Year)
  • REACH Status: REACH Unaffected
  • HTSUS: 8541.41.0000
  • Other Names: 67-2333-1, 67-2333-2, and 67-2333-6
  • Base Product Number: SML-LXIL0603
