Same model may have multiple batches, images only for reference.

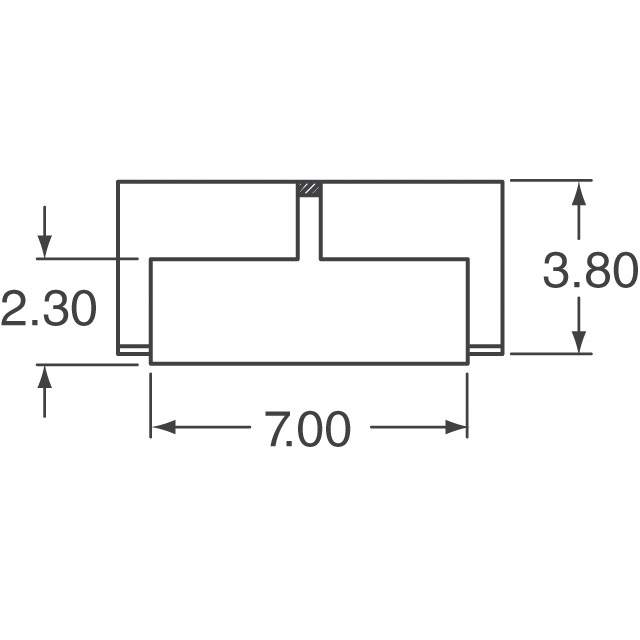

SML-LXIL3333SIC-TR Real Image
Same model may have multiple batches, images only for reference.

SML-LXIL3333SIC-TR

Part No SML-LXIL3333SIC-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED 625NM RED WTR CLR 8MM SQ SMD / Red 625nm LED Indication - Discrete 2.2V 3333 (8585 Metric)
Datasheet
SML-LXIL3333SIC-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Cut Tape (CT),
Product Status Obsolete
Color Red
Voltage - Forward (Vf) (Typ) 2.2V
Current - Test 30mA
Viewing Angle 14°
Mounting SMD (SMT)
Wavelength - Dominant 625nm
Wavelength - Peak 625nm
Package / Case 3333 (8585 Metric)
Supplier Device Package 3333
Dimension 8.50mm L x 8.50mm W
Height (Max) 4.00mm
Other Names 67-2083-1,67-2083-2,67-2083-6,SMLLXIL3333SICTR
Standard Package 200
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241912-SML-LXIL3333SIC-TR
Ultra Librarian 3D Model Ultra Librarian SML-LXIL3333SIC-TR CAD Model

Description

The SML-LXIL3333SIC-TR is a red LED indication discrete with a viewing angle of 14°.

  • Viewing Angle: 14°
  • Forward Voltage: 2.2V (typical)
  • Test Current: 30mA
  • Dominant Wavelength: 625nm
  • Peak Wavelength: 625nm
  • Height: 4.00mm
  • Mounting Type: SMD (SMT)
  • Package/Case: 3333 (8585 Metric)
  • Dimension: 8.50mm L x 8.50mm W
  • Status: Obsolete
  • Standard Package: 200
