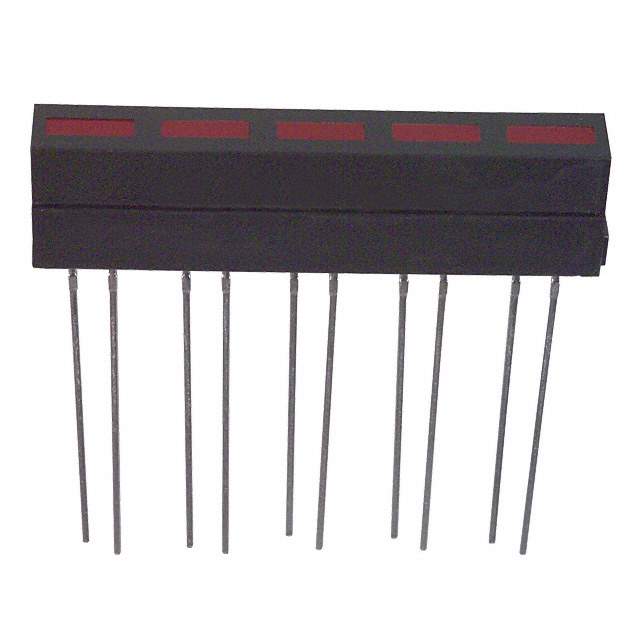

SSA-LXB525ID Real Image
Same model may have multiple batches, images only for reference.

SSA-LXB525ID

Part No SSA-LXB525ID
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED ARRAY 2X5MM 5-SEG RED / LED Circuit Board Indicator LED Circuit Board Indicator Bar - 5 Wide, SIP Red (x 5) Diffused, Tinted 2V 30mA Rectangle with Flat Top 5.30mm x 1.80mm Through Hole
Datasheet
SSA-LXB525ID Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Red (x 5)
Wavelength - Peak 635nm
Configuration Bar - 5 Wide, SIP
Current 30mA
Millicandela Rating 12mcd
Viewing Angle 110°
Lens Type Diffused, Tinted
Lens Style Rectangle with Flat Top
Lens Size 5.30mm x 1.80mm
Voltage Rating 2V
Mounting Type Through Hole
Base Product Number SSA-LXB525
Other Names 67-1201,67-1201R,LU20011,SSALXB525ID
Standard Package 210
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238183-SSA-LXB525ID
Ultra Librarian 3D Model Ultra Librarian SSA-LXB525ID CAD Model

Description

The LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs Red (x 5) is a high-quality optoelectronic component that is suitable for various applications.

  • Standard Package: 210
  • Configuration: Bar - 5 wide, SIP
  • Voltage Rating: 2V
  • Wavelength @ peak: 635nm
  • Current: 30mA
  • Lens Type: Diffused, tinted
  • Mounting Type: Through-hole
  • Lens Style: Rectangle with a flat top
  • Lens Size: 5.30mm x 1.80mm
  • Manufacturer: Lumex Opto/Components Inc.
