Same model may have multiple batches, images only for reference.

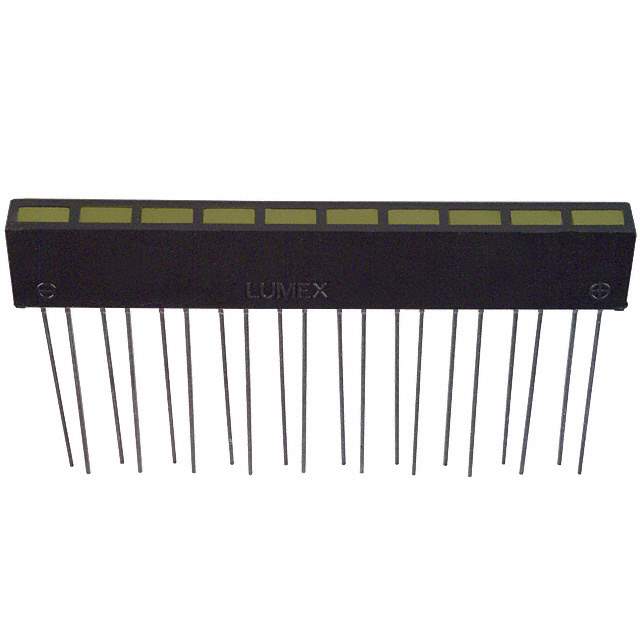

SSA-LXH1025YD Real Image
Same model may have multiple batches, images only for reference.

SSA-LXH1025YD

Part No SSA-LXH1025YD
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED ARRAY 2.5X5MM 10-SEG YELLOW / LED Circuit Board Indicator LED Circuit Board Indicator Bar - 10 Wide, SIP Yellow (x 10) Diffused, Tinted 2.1V 30mA Rectangle with Flat Top 5.00mm x 2.50mm Through Hole
Datasheet
SSA-LXH1025YD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Yellow (x 10)
Wavelength - Peak 585nm
Configuration Bar - 10 Wide, SIP
Current 30mA
Millicandela Rating 10mcd
Viewing Angle 110°
Lens Type Diffused, Tinted
Lens Style Rectangle with Flat Top
Lens Size 5.00mm x 2.50mm
Voltage Rating 2.1V
Mounting Type Through Hole
Base Product Number SSA-LXH1025
Other Names 67-1207R,LU20027,67-1207,SSA-LXB1025YD,SSALXH1025YD
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238145-SSA-LXH1025YD
Ultra Librarian 3D Model Ultra Librarian SSA-LXH1025YD CAD Model

Description

The Lumex Opto/Components Inc. SSA-LXH1025YD is a yellow LED with a voltage rating of 2.1V and a millicandela rating of 10mcd.

  • Category: Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
  • Packaging: Bulk
  • Standard Package: 100
  • Configuration: Bar - 10 wide, SIP
  • Viewing Angle: 110°
  • Wavelength - Peak: 585nm
  • Current: 30mA
  • Lens Type: Diffused, tinted
  • Mounting Type: Through hole
  • Lens Style: Rectangle with flat top
  • Lens Size: 5.00mm x 2.50mm
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH unaffected
  • HTSUS: 8541.41.0000
