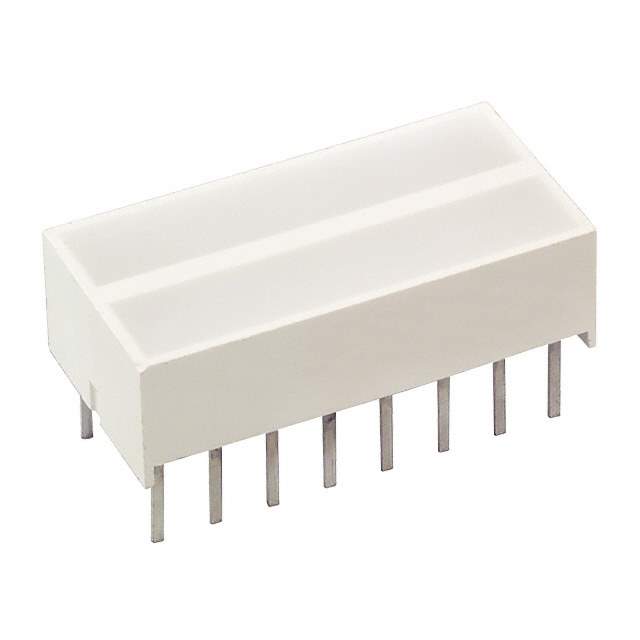

SSB-LXF100SRW Real Image
Same model may have multiple batches, images only for reference.

SSB-LXF100SRW

Part No SSB-LXF100SRW
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED LTBAR 2WNDW 8CHP SUPRED DIFF / LED Circuit Board Indicator LED Circuit Board Indicator Bar - 2 High, DIP Red (x 2) Diffused, White 1.7V 30mA Rectangle with Flat Top Through Hole
Datasheet
SSB-LXF100SRW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Red (x 2)
Wavelength - Peak 660nm
Configuration Bar - 2 High, DIP
Current 30mA
Millicandela Rating 80mcd
Viewing Angle 160°
Lens Type Diffused, White
Lens Style Rectangle with Flat Top
Voltage Rating 1.7V
Mounting Type Through Hole
Base Product Number SSB-LXF100
Other Names 67-1035,67-1035R
Standard Package 10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238190-SSB-LXF100SRW
Ultra Librarian 3D Model Ultra Librarian SSB-LXF100SRW CAD Model

Description

The SSB-LXF100SRW LED circuit board indicator from Lumex Opto/Components Inc. is a bar configuration bulk package with a standard package of 10.

  • Viewing Angle: 160 degrees
  • Millicandela Rating: 80mcd for red
  • Forward Voltage: 1.7V
  • Wavelength Peak: 660nm
  • Lens Type: diffused white
  • Lens Style: rectangle with flat top
