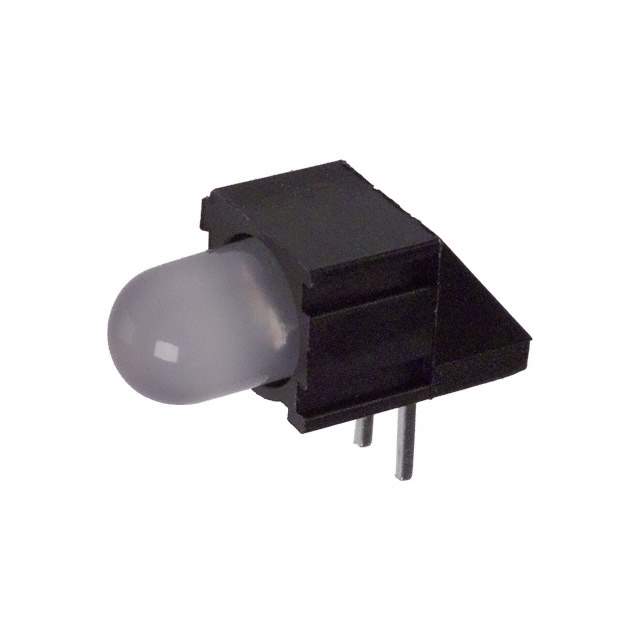

SSF-LXH100MHGW Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH100MHGW

Part No SSF-LXH100MHGW
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 5MM RA MATING RED/GRN BICLR / LED Circuit Board Indicator LED Circuit Board Indicator Single Green, Red Diffused, White 2.2V Green, 2V Red 20mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle
Datasheet
SSF-LXH100MHGW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Green, Red
Wavelength - Peak 565nm, 700nm
Configuration Single
Current 20mA
Viewing Angle 60°
Lens Type Diffused, White
Lens Style Round with Domed Top
Lens Size 5mm, T-1 3/4
Voltage Rating 2.2V Green, 2V Red
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH100
Other Names SSFLXH100MHGW,LU200815,67-1226,67-1226R
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238229-SSF-LXH100MHGW
Ultra Librarian 3D Model Ultra Librarian SSF-LXH100MHGW CAD Model

Description

The Lumex Opto/Components Inc. SSF-LXH100MHGW is a LED circuit board indicator available in green and red colors.

  • Viewing Angle: 60°
  • Voltage Rating: 2.2V for green and 2V for red
  • Millicandela Rating: -
  • Package: Bulk
  • Standard Package: 500
  • Lens Type: Diffused White
  • Mounting Type: Through-Hole Right Angle
  • Lens Style: Round with a Domed Top
  • Lens Size: 5mm, T-1 3/4
  • ECCN: EAR99
  • REACH Status: REACH Unaffected
  • Market Status: Open Market
