Same model may have multiple batches, images only for reference.

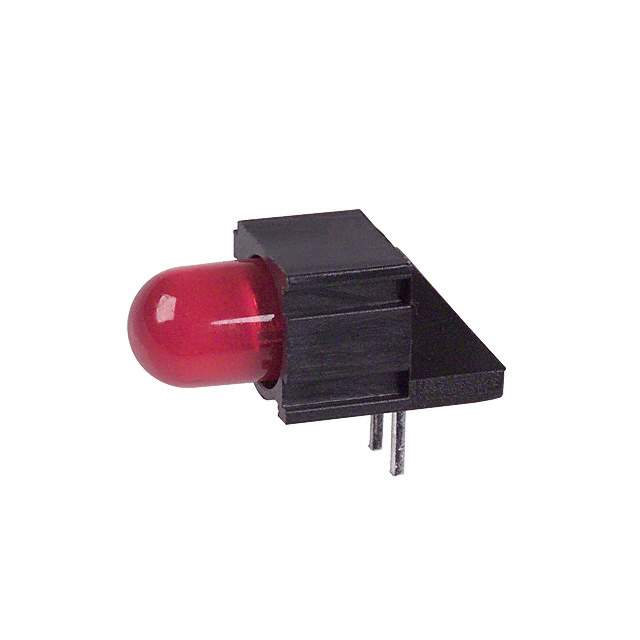

SSF-LXH100MSRD Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH100MSRD

Part No SSF-LXH100MSRD
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 5MM RA MATING SUP RED PCMNT / LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused, Tinted 1.8V 20mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle
Datasheet
SSF-LXH100MSRD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Red
Wavelength - Peak 660nm
Configuration Single
Current 20mA
Millicandela Rating 100mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 5mm, T-1 3/4
Voltage Rating 1.8V
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH100
Other Names SSFLXH100MSRD,67-1230,LU2008B1,67-1230R,Q5871525
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238154-SSF-LXH100MSRD
Ultra Librarian 3D Model Ultra Librarian SSF-LXH100MSRD CAD Model

Description

The Lumex Opto/Components Inc. LED is a high-quality electronic component designed for use in various electronic devices.

  • Manufacturer: Lumex Opto/Components Inc.
  • Product: LED
  • Category: Optoelectronics
  • Series: LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
  • Win Source Part Number: 1238154-SSF-LXH100MSRD
  • Packaging: Bulk
  • Color: Red
  • Voltage Rating: 1.8V
  • Standard Package: 500
  • Configuration: Single
  • Viewing Angle: 60 degrees
  • Millicandela Rating: 100mcd
  • Peak Wavelength: 660nm
  • Current: 20mA
  • Lens Type: Diffused, Tinted
  • Mounting Type: Through Hole, Right Angle
  • Lens Style: Round with a Domed Top
  • Lens Size: 5mm, T-1 3/4
