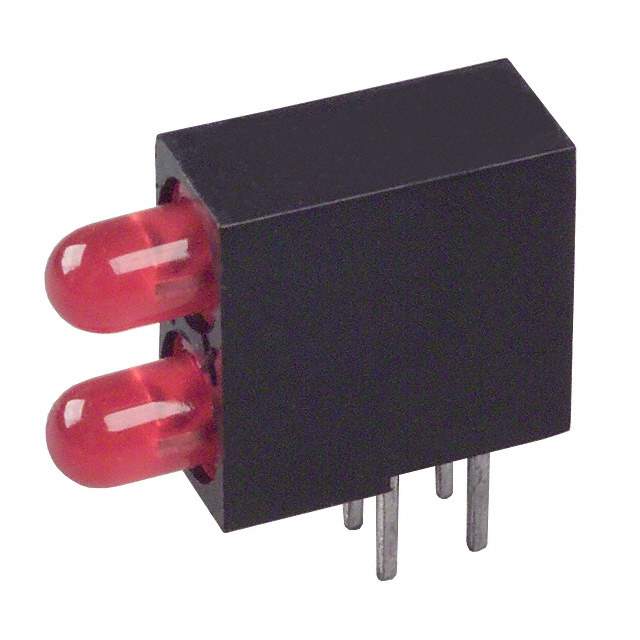

SSF-LXH2103LIID/4 Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH2103LIID/4

Part No SSF-LXH2103LIID/4
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 3MM 2-HI RED/RED LOW I PCMNT / LED Circuit Board Indicator LED Circuit Board Indicator 2 High Red (x 2) Diffused, Tinted 2V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
Datasheet
SSF-LXH2103LIID/4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Red (x 2)
Wavelength - Peak 635nm
Configuration 2 High
Current 20mA
Millicandela Rating 40mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage Rating 2V
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH2103
Other Names 67-1258R,SSFLXH2103LIID4,SSF-LXH2103LILID,SSF-LXH2103LILID/4,67-1258,LU20181
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238193-SSF-LXH2103LIID/4
Ultra Librarian 3D Model Ultra Librarian SSF-LXH2103LIID/4 CAD Model

Description

The 1238193-SSF-LXH2103LIID/4 is a red LED circuit board indicator from Lumex Opto/Components Inc.

  • Voltage Rating: 2V
  • Current: 20mA
  • Viewing Angle: 60 degrees
  • Millicandela Rating: 40mcd
  • Wavelength @ peak: 635nm
  • Package: bulk
  • Standard Package: 500
  • Configuration: two high LEDs
  • Lens Type: diffused, tinted
  • Lens Style: round with a domed top
  • Mounting Type: through-hole, right angle
