Same model may have multiple batches, images only for reference.

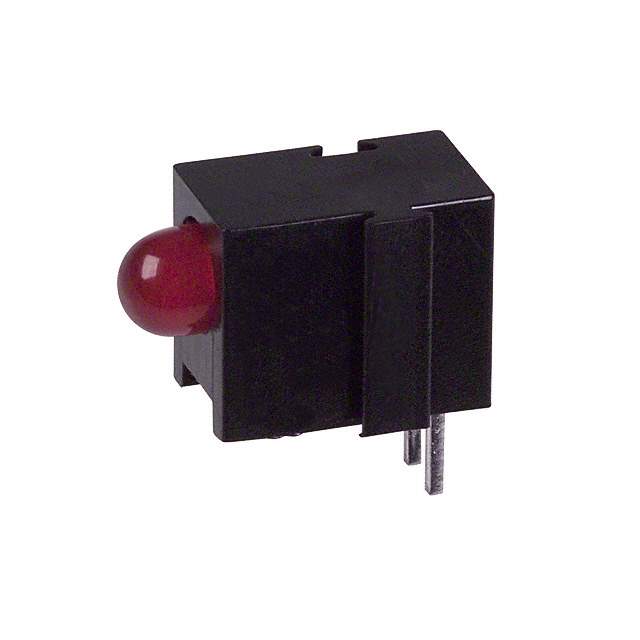

SSF-LXH2300ID-5V-LM Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH2300ID-5V-LM

Part No SSF-LXH2300ID-5V-LM
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 3MM 5V RA MATING RED PC MNT / LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused, Tinted 5V 30mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
Datasheet
SSF-LXH2300ID-5V-LM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Red
Wavelength - Peak 635nm
Configuration Single
Current 30mA
Millicandela Rating 30mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage Rating 5V
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH2300
Other Names SSF-LXH2300ID-5V,67-1279,LU20261,67-1279R
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238164-SSF-LXH2300ID-5V-LM
Ultra Librarian 3D Model Ultra Librarian SSF-LXH2300ID-5V-LM CAD Model

Description

The SSF-LXH2300ID-5V-LM is a red LED from Lumex Opto/Components Inc.

  • Manufacturer: Lumex Opto/Components Inc.
  • Voltage Rating: 5V
  • Current: 30mA
  • Package: Bulk
  • Standard Package: 500
  • Millicandela Rating: 30mcd
  • Viewing Angle: 60 degrees
  • Peak Wavelength: 635nm
  • Lens Type: Diffused and tinted
  • Mounting Type: Through hole and right angle
  • Lens Style: Round with a domed top
  • Lens Size: 3mm, T-1
  • MSL Level: 1 (unlimited)
  • REACH status: REACH unaffected
  • HTSUS: 8541.41.0000
