Same model may have multiple batches, images only for reference.

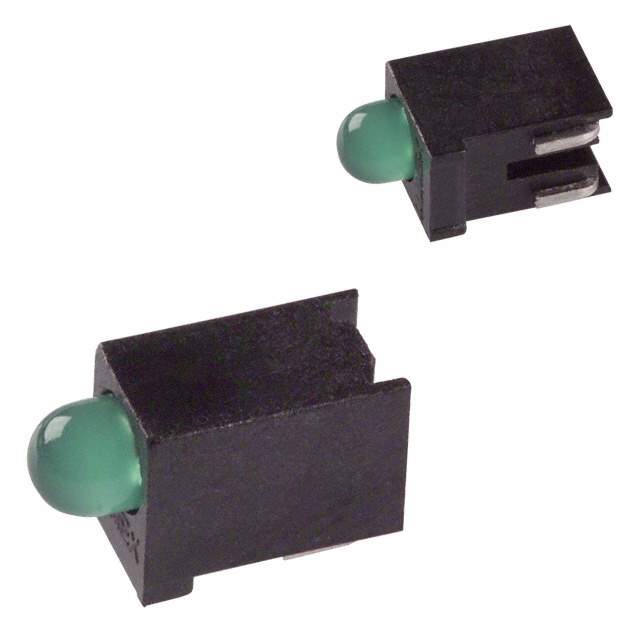

SSF-LXH305SGD Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH305SGD

Part No SSF-LXH305SGD
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED T-3MM 565NM SGRN DIFF RA SMD / LED Circuit Board Indicator LED Circuit Board Indicator Single Green Diffused, Tinted 2.2V 20mA Surface Mount, Right Angle
Datasheet
SSF-LXH305SGD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Green
Wavelength - Peak 565nm
Configuration Single
Current 20mA
Millicandela Rating 150mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Voltage Rating 2.2V
Mounting Type Surface Mount, Right Angle
Base Product Number SSF-LXH305
Other Names Q3003123
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238222-SSF-LXH305SGD
Ultra Librarian 3D Model Ultra Librarian SSF-LXH305SGD CAD Model

Description

The Lumex Opto/Components Inc. SSF-LXH305SGD is a green LED with a diffused, tinted lens.

  • Mounting Type: Surface Mounted and Right Angle
  • Viewing Angle: 60 degrees
  • Voltage Rating: 2.2V
  • Current: 20mA
  • Standard Package: 500
  • Millicandela Rating: 150mcd
  • Wavelength-Peak: 565nm
  • Category: Optoelectronics
  • Application: LEDs - circuit board indicators, arrays, light bars, bar graphs
