Same model may have multiple batches, images only for reference.

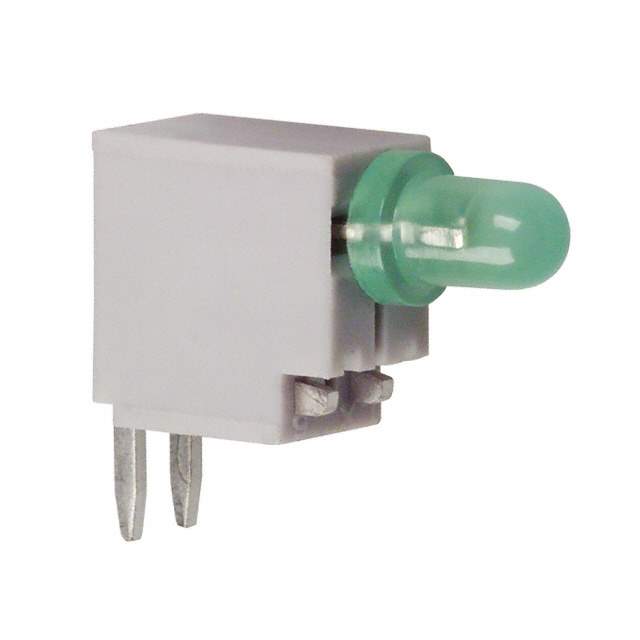

SSF-LXH4RAGD Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH4RAGD

Part No SSF-LXH4RAGD
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 3MM RELAMPABLE GREEN PC MNT / LED Circuit Board Indicator LED Circuit Board Indicator Single Green Diffused, Tinted 2.1V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
Datasheet
SSF-LXH4RAGD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Green
Wavelength - Peak 565nm
Configuration Single
Current 20mA
Millicandela Rating 30mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage Rating 2.1V
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH4
Other Names LU20345,SSFLXH4RAGD,67-1304,67-1304R
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238219-SSF-LXH4RAGD
Ultra Librarian 3D Model Ultra Librarian SSF-LXH4RAGD CAD Model

Description

The SSF-LXH4RAGD is a single green LED with a millicandela rating of 30mcd.

  • Viewing Angle: 60 degrees
  • Voltage Rating: 2.1V
  • Mounting Type: Through-Hole, Right-Angle
  • Lens Type: Round, Domed Top
  • Lens Size: 3mm, T-1
  • Package: Bulk
  • Category: Optoelectronics
  • Application: LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
  • Wavelength Peak: 565nm
  • Current: 20mA
