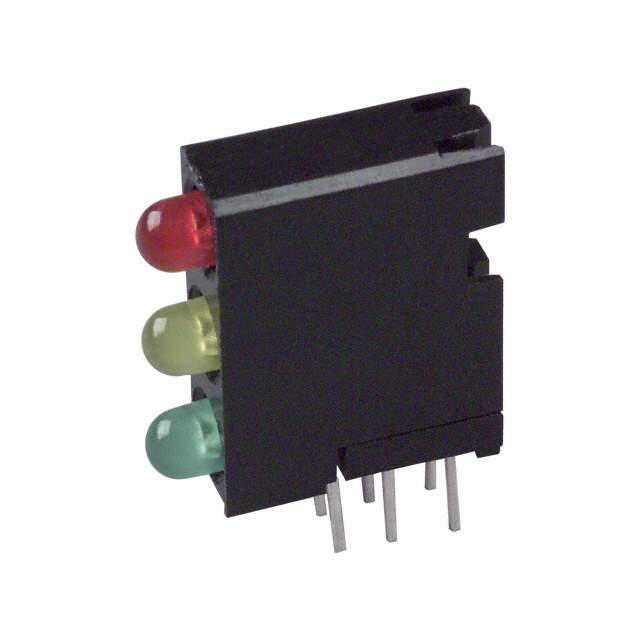

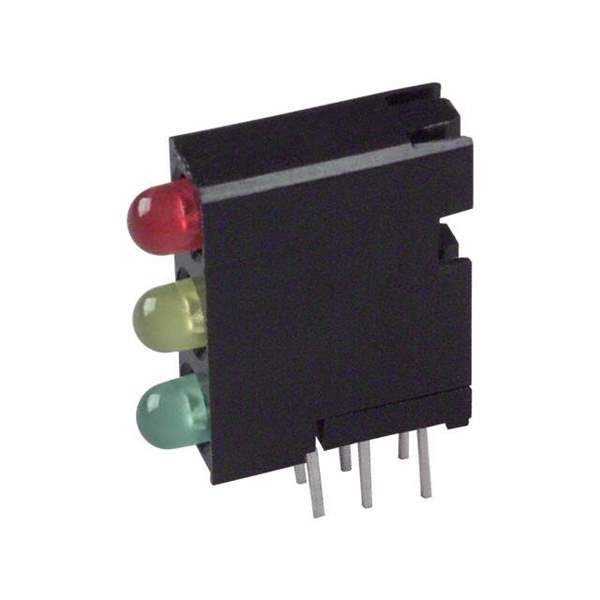

564-0100-132F Real Image
Same model may have multiple batches, images only for reference.

564-0100-132F

Part No 564-0100-132F
Manufacturer Dialight
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 3HI 3MM RED/YEL/GRN PC MNT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Dialight
Packaging Bulk
Status Active
Color Green (x 1), Red (x 1), Yellow (x 1)
Wavelength - Peak 565nm, 635nm, 585nm
Configuration 3 High
Millicandela Rating 12.6mcd Green, 10mcd Red, 10mcd Yellow
Viewing Angle 60°
Lens Style/Size Round with Domed Top, 3mm (T-1)
Voltage Rating 2.1V Green, 2V Red, 2.1V Yellow
Mounting Through Hole, Right Angle
Win Source Part Number 22543-564-0100-132F
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Signalling
Ultra Librarian 3D Model Ultra Librarian 564-0100-132F CAD Model

Description

564-0100-132F Resistor Network

The 564-0100-132F is a precision resistor network engineered for balanced impedance matching and noise suppression in high-frequency applications.

  • Applications: Communication equipment, Signal processing, RF circuits, Data transmission.
  • Features and Benefits: Precision matching, Noise suppression, High-frequency stability, Space-saving design.

    • Additional Details: The resistor network is perfect for applications requiring precision resistance in a compact package, with exceptional performance in minimizing interference and signal distortion.
