Same model may have multiple batches, images only for reference.

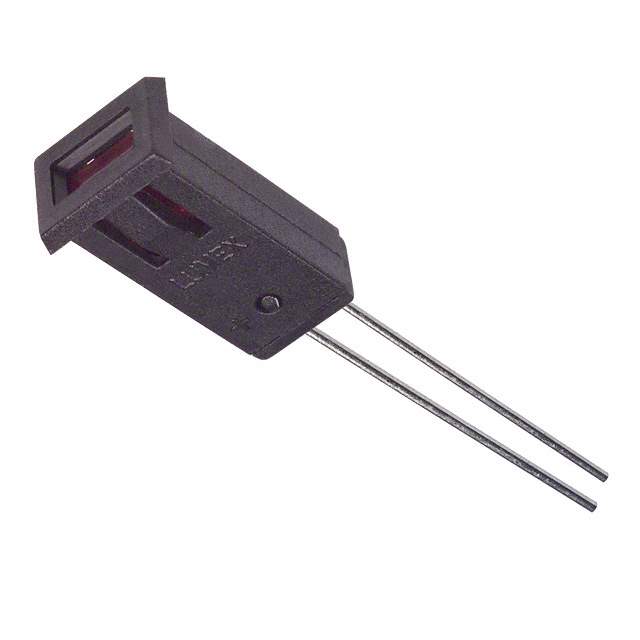

SSI-LXMP059SRD Real Image
Same model may have multiple batches, images only for reference.

SSI-LXMP059SRD

Part No SSI-LXMP059SRD
Manufacturer Lumex Opto/Components Inc.
Catalog Panel Indicators, Pilot Lights
Description LED 2X5MM SUPER RED PANEL MOUNT / LED Panel Indicator Red Diffused 110° 1.7V 30mA
Datasheet
SSI-LXMP059SRD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Panel Indicators, Pilot Lights
Mfr Lumex Opto/Components Inc.
Package Bulk
Type LED
Lamp Color Red
Lens Color Red
Lens Transparency Diffused
Ratings Vf (Typ), If (Max)
Voltage 1.7V
Current 30mA
Panel Cutout Shape Rectangle
Panel Cutout Dimensions 0.26" x 0.18" (6.60mm x 4.57mm)
Lens Size 4.20mm x 1.83mm
Lens Style Rectangle with Flat Top
Millicandela Rating 25mcd
Wavelength - Peak 660nm
Viewing Angle 110°
Base Product Number SSI-LXMP059
Other Names 67-1182R,67-1182,LU1008B1
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1237834-SSI-LXMP059SRD
Ultra Librarian 3D Model Ultra Librarian SSI-LXMP059SRD CAD Model

Description

The Lumex Opto/Components Inc. Panel Indicators, Pilot Lights is a red LED with a 25mcd millicandela rating and a voltage rating of 1.7V.

  • Current: 30mA
  • Panel Cutout Dimensions: 0.26" x 0.18" (6.60mm x 4.57mm)
  • Viewing Angle: 110 degrees
  • Lens Transparency: diffused
  • REACH: unaffected
  • HTSUS: 8541.41.0000
  • MSL Level: 1 (Unlimited)
  • Other names: 67-1182R, 67-1182, and LU1008B1
