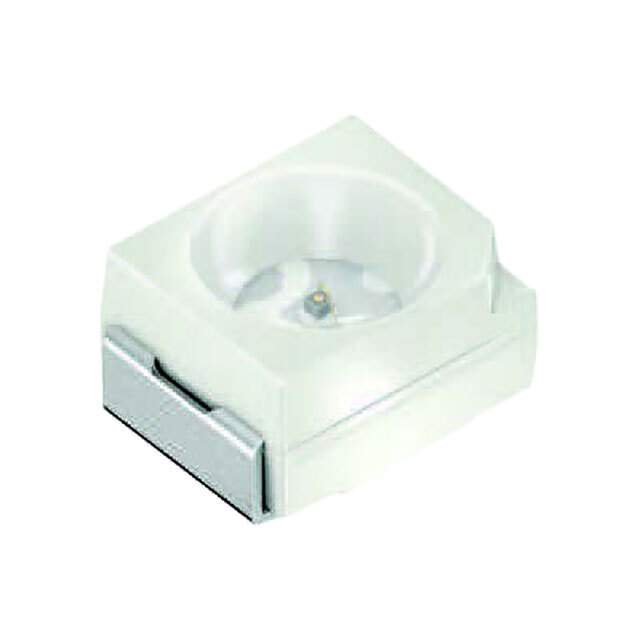

SFH 4253-Z Real Image
Same model may have multiple batches, images only for reference.

SFH 4253-Z

Part No SFH 4253-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 860NM 70MA 3.20MM SMD / Infrared (IR) Emitter 860nm 1.6V 70mA 6.3mW/sr @ 70mA 120° 2-SMD, No Lead
Datasheet
SFH 4253-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr ams-OSRAM USA Inc.
Series TOPLED
Package Tape & Reel
Type Infrared (IR)
Current - DC Forward (If) (Max) 70mA
Radiant Intensity (Ie) Min @ If 6.3mW/sr @ 70mA
Wavelength 860nm
Voltage - Forward (Vf) (Typ) 1.6V
Viewing Angle 120°
Orientation Top View
Temperature Range - Operating -40°C ~ 100°C (TA)
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Base Product Number SFH4253
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 475-2868-1,Q65110A6657,SFH4253,SFH4253-Z,SFH 4253,SFH 4253-Z-ND,475-2868-6,475-2868-2,SFH4253Z
Standard Package 2,000
Win Source Part Number 1170064-SFH 4253-Z
Ultra Librarian 3D Model Ultra Librarian SFH 4253-Z CAD Model

Description

The SFH 4253-Z is an infrared LED emitter from ams-OSRAM USA Inc.

  • Package: 2,000
  • Mounting Type: Surface Mount
  • Viewing Angle: 120 degrees
  • Forward Voltage: 1.6 V
  • Wavelength: 860 nm
  • Radiant Intensity: 6.3 mW/sr @ 70 mA
  • Operating Temperature: -40 to 100 degrees Celsius
