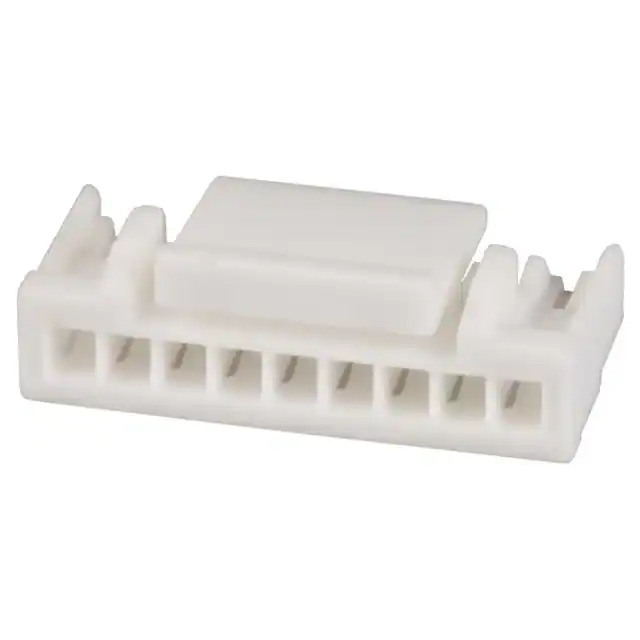

GHR-09V-S JST Sales America Inc.
Same model may have multiple batches, images only for reference.

GHR-09V-S

Part No GHR-09V-S
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN RCPT HSG 9POS 1.25MM / 9 Rectangular Connectors - Housings Receptacle Natural 0.049" (1.25mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr JST Sales America Inc.
Series GH
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 9
Pitch 0.049" (1.25mm)
Number of Rows 1
Row Spacing -
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Natural
Features -
Temperature Range - Operating -25°C ~ 85°C
Note Contacts Not Included
Base Product Number GHR-09V
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1362543-GHR-09V-S
Ultra Librarian 3D Model Ultra Librarian GHR-09V-S CAD Model

Description

The 1362543-GHR-09V-S is a rectangular connector housing manufactured by JST Sales America Inc.

  • Series: GH
  • Mounting Type: Free Hanging (In-Line)
  • Connector Type: Receptacle
  • Fastening Type: Latch Lock
  • Positions: 9
  • Number of Rows: 1
  • Contact Termination: Crimp
  • Contact Type: Female Socket
  • Pitch: 0.049" (1.25mm)
  • Color: Natural
  • Contacts Included: No
  • Operating Temperature: -25°C to 85°C
  • Product Status: Active
  • Packaging: Bulk
  • HTSUS Code: 8538.90.6000
  • ECCN: EAR99
