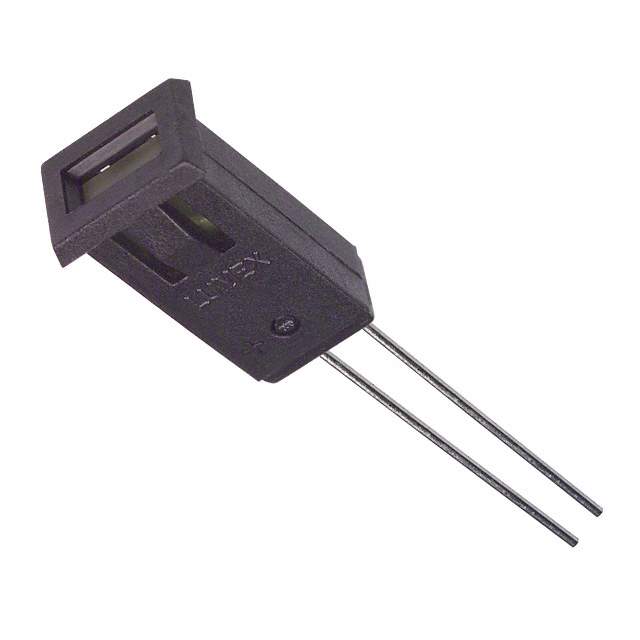

SSI-LXMP059YD Real Image
Same model may have multiple batches, images only for reference.

SSI-LXMP059YD

Part No SSI-LXMP059YD
Manufacturer Lumex Opto/Components Inc.
Catalog Panel Indicators, Pilot Lights
Description LED 2X5MM YELLOW PANEL MOUNT / LED Panel Indicator Yellow Diffused 110° 2.1V 30mA
Datasheet
SSI-LXMP059YD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Panel Indicators, Pilot Lights
Mfr Lumex Opto/Components Inc.
Package Bulk
Type LED
Lamp Color Yellow
Lens Color Yellow
Lens Transparency Diffused
Ratings Vf (Typ), If (Max)
Voltage 2.1V
Current 30mA
Panel Cutout Shape Rectangle
Panel Cutout Dimensions 0.26" x 0.18" (6.60mm x 4.57mm)
Lens Size 4.20mm x 1.83mm
Lens Style Rectangle with Flat Top
Millicandela Rating 10mcd
Wavelength - Peak 585nm
Viewing Angle 110°
Base Product Number SSI-LXMP059
Other Names 67-1181,LU10087,67-1181R,SSILXMP059YD
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1237794-SSI-LXMP059YD
Ultra Librarian 3D Model Ultra Librarian SSI-LXMP059YD CAD Model

Description

The SSI-LXMP059YD is a yellow LED panel indicator from Lumex Opto/Components Inc.

  • Viewing Angle: 110 degrees
  • Millicandela Rating: 10mcd
  • Peak Wavelength: 585nm
  • Voltage Rating: 2.1V
  • Current Rating: 30mA
  • Lens Style: Rectangle with a Flat Top
  • Lens Size: 4.20mm x 1.83mm
  • Panel Cutout Dimensions: 0.26" x 0.18" (6.60mm x 4.57mm)
  • Category: Optoelectronics
  • Application: Panel Indicators, Pilot Lights
  • Package: Bulk
  • Standard Package: 100
