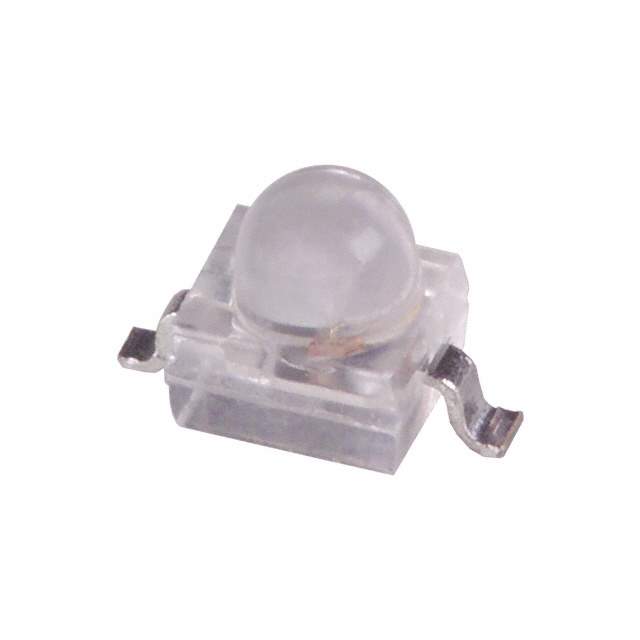

SSL-LXA228SOC-TR11 Real Image
Same model may have multiple batches, images only for reference.

SSL-LXA228SOC-TR11

Part No SSL-LXA228SOC-TR11
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED ORANGE CLEAR AXIAL SMD / Orange LED Indication - Discrete 2V 2-SMD, Gull Wing
Datasheet
SSL-LXA228SOC-TR11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Color Orange
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 700mcd
Lens Style Round with Domed Top
Lens Size 1.90mm Dia
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 25°
Mounting SMD (SMT)
Wavelength - Peak 620nm
Package / Case 2-SMD, Gull Wing
Supplier Device Package Axial
Dimension 2.50mm L x 2.00mm W
Height (Max) 3.00mm
Base Product Number SSL-LXA228
Other Names 67-1728-6,67-1728-1R,67-1728-2R,SSLLXA228SOCTR11,67-1728-1,67-1728-2
Standard Package 1,000
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241874-SSL-LXA228SOC-TR11
Ultra Librarian 3D Model Ultra Librarian SSL-LXA228SOC-TR11 CAD Model

Description

The SSL-LXA228SOC-TR11 is an orange SMD LED from Lumex Opto/Components Inc.

  • Viewing Angle: 25 degrees
  • Millicandela Rating: 700mcd
  • Voltage Forward: 2V
  • Current Test: 20mA
  • Lens Style: Round with a domed top
  • Lens Size: 1.90mm in diameter
  • Lens Color: Colorless
  • Lens Transparency: Clear
  • Package Size: 2-SMD, Gull Wing
  • Packaging: Tape and reel packaged with a standard package of 1,000
  • MSL Level: 4 (72 Hours)
  • REACH: REACH status is unaffected
  • HTSUS Code: 8541.41.0000
