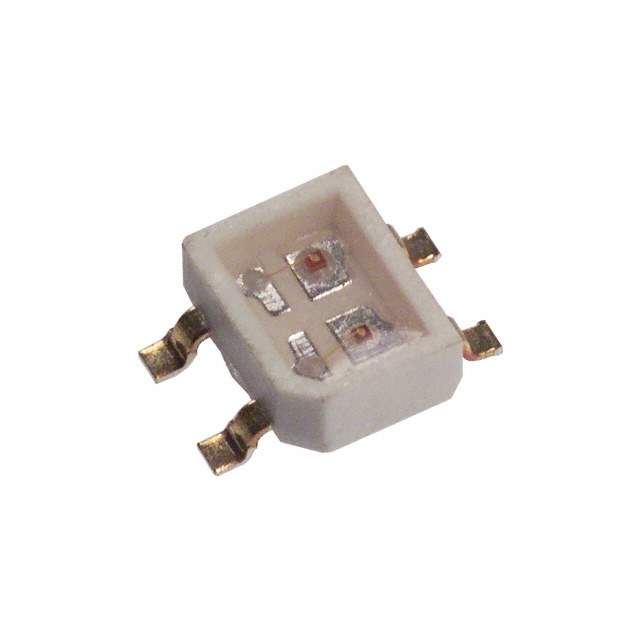

Same model may have multiple batches, images only for reference.

SSL-LXA3025YGC-TR

Name: SSL-LXA3025YGC-TR
Brand: Lumex Opto/Components Inc.
SKU: 1241824
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SSL-LXA3025YGC-TR
Manufacturer	Lumex Opto/Components Inc.
Catalog	LED Indication - Discrete
Description	LED GREEN/YELLOW CLEAR AXIAL SMD / Green, Yellow LED Indication - Discrete 2.2V Green, 2.1V Yellow 4-SMD, Gull Wing
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Indication - Discrete
Mfr	Lumex Opto/Components Inc.
Package	Tape & Reel
Product Status	Obsolete
Color	Green, Yellow
Configuration	Independent
Lens Color	Colorless
Lens Transparency	Clear
Millicandela Rating	12mcd Green, 12mcd Yellow
Lens Style	Rectangle with Flat Top
Voltage - Forward (Vf) (Typ)	2.2V Green, 2.1V Yellow
Current - Test	20mA Green, 20mA Yellow
Viewing Angle	130°
Mounting	SMD (SMT)
Wavelength - Peak	565nm Green, 585nm Yellow
Package / Case	4-SMD, Gull Wing
Supplier Device Package	Axial
Dimension	3.40mm L x 2.80mm W
Height (Max)	1.50mm
Base Product Number	SSL-LXA3025
Other Names	67-1373-1,67-1373-2,Q586182B,SSLLXA3025YGCTR,LU604275CT,LU604275TR,67-1373-6R,67-1373-6,67-1373-1R
Standard Package	1,000
MSL Level	4 (72 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Win Source Part Number	1241824-SSL-LXA3025YGC-TR
Ultra Librarian 3D Model	Ultra Librarian SSL-LXA3025YGC-TR CAD Model

Alternative Products

Description

The Lumex Opto/Components Inc. SSL-LXA3025YGC-TR is a colorless, clear, independent LED indication component that comes in a 4-SMD, Gull Wing package.

Viewing Angle: 130 degrees
Millicandela Rating (Green): 12mcd
Millicandela Rating (Yellow): 12mcd
Voltage-Forward (Green): 2.2V
Voltage-Forward (Yellow): 2.1V
Wavelength-Peak (Green): 565nm
Wavelength-Peak (Yellow): 585nm
Height: 1.50mm
Dimension: 3.40mm L x 2.80mm W
Suitable for: Optoelectronics applications
Package: Tape and reel
Status: Obsolete
