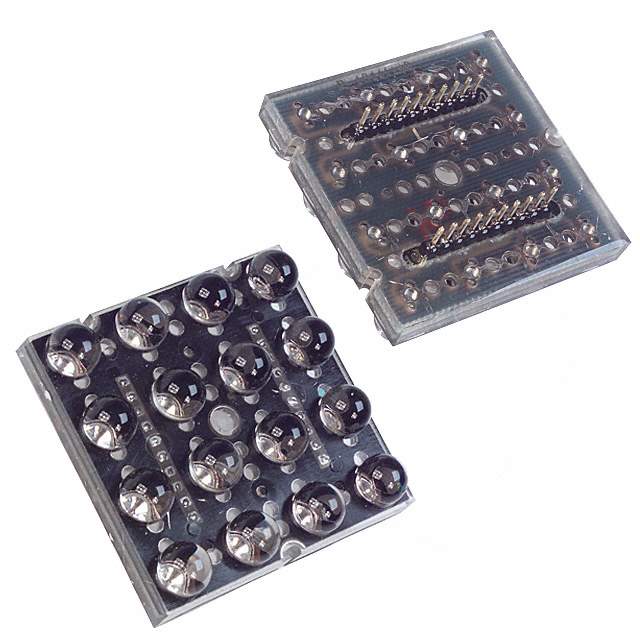

SSP-LXS1826U16A Real Image
Same model may have multiple batches, images only for reference.

SSP-LXS1826U16A

Part No SSP-LXS1826U16A
Manufacturer Lumex Opto/Components Inc.
Catalog Display Modules - LED Dot Matrix and Cluster
Description LED 46MM SQR 16LED-CLUSTR ULTRED / Dot Matrix Display Module 4 x 4 Common Anode Row, Common Cathode Column Red 1.8V 1.82" L x 1.82" W x 0.49" H (46.33mm x 46.33mm x 12.45mm)
Datasheet
SSP-LXS1826U16A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Dot Matrix and Cluster
Mfr Lumex Opto/Components Inc.
Package Bulk
Product Status Obsolete
Millicandela Rating 2000mcd
Internal Connection Common Anode Row, Common Cathode Column
Dimension 1.82" L x 1.82" W x 0.49" H (46.33mm x 46.33mm x 12.45mm)
Color Red
Configuration 4 x 4
Voltage - Forward (Vf) (Typ) 1.8V
Other Names 67-1598,67-1598,441-1077
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242538-SSP-LXS1826U16A
Ultra Librarian 3D Model Ultra Librarian SSP-LXS1826U16A CAD Model

Description

The Lumex Opto/Components Inc. LED Dot Matrix and Cluster Display Module is an electronic component that comes in a bulk package with 100 standard packages.

  • Configuration: 4 x 4
  • Internal Connection: common anode row and common cathode column
  • Dimension: 1.82" L x 1.82" W x 0.49" H (46.33mm x 46.33mm x 12.45mm)
  • Millicandela Rating: 2000mcd
  • Voltage-Forward (Vf): 1.8V
  • Obsolete: yes
  • ECCN: EAR99
