Same model may have multiple batches, images only for reference.

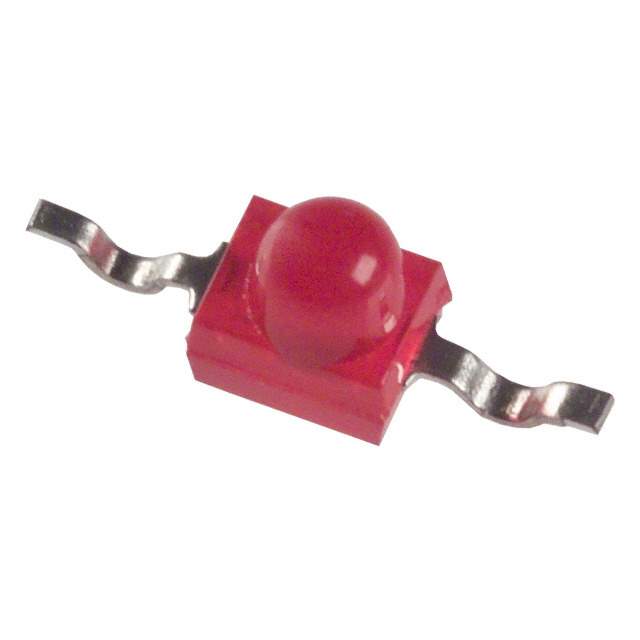

SSL-LXA228ID-TR21 Real Image
Same model may have multiple batches, images only for reference.

SSL-LXA228ID-TR21

Part No SSL-LXA228ID-TR21
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED RED DIFFUSED 2SMD REV
Datasheet
SSL-LXA228ID-TR21 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Lumex Opto/Components Inc.
Packaging Reel - TR
Status Active
Color Red
Lens Color Red
Lens Transparency Diffused
Millicandela Rating 12mcd
Lens Style/Size Round with Domed Top, 1.90mm
Forward Voltage 2V
Current - Test 20mA
Viewing Angle 50°
Mounting Surface Mount, Bottom Entry
Wavelength - Peak 635nm
Case / Package Axial
Height (Max) 2.90mm
Win Source Part Number 047263-SSL-LXA228ID-TR21
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SSL-LXA228ID-TR21 CAD Model

Description

The Lumex Opto/Components Inc. 047263-SSL-LXA228ID-TR21 is a red LED with a viewing angle of 50 degrees and a millicandela rating of 12mcd. It has a forward voltage of 2V and a current test of 20mA. This LED has a surface mount and bottom entry mounting style with a round, domed top lens that is 1.90mm in size. The lens color is red and has a diffused transparency. This product is packaged in a reel - TR and is categorized under optoelectronics. The supply and demand status is balanced.
