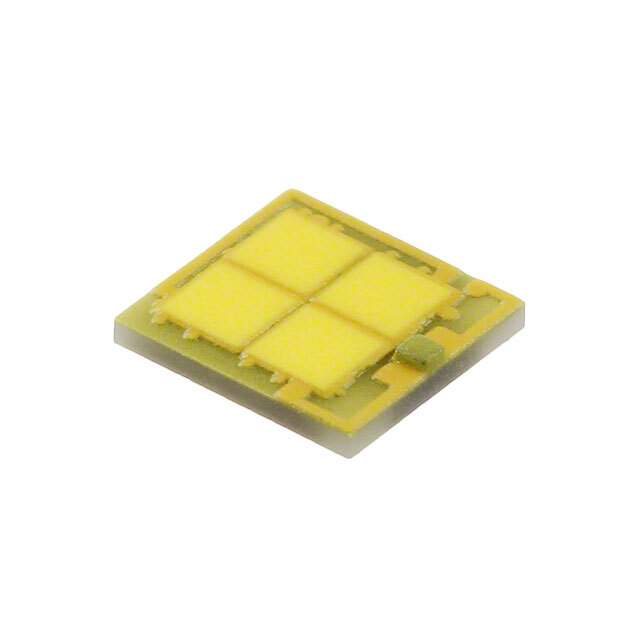

LMZ9-SW27 Real Image
Same model may have multiple batches, images only for reference.

LMZ9-SW27

Part No LMZ9-SW27
Manufacturer Lumileds
Catalog LED Lighting - White
Description LED LUXEON WARM WHITE 2700K 2SMD
Datasheet
LMZ9-SW27 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Estimated Pruduction Lead Time 7 Weeks
Features LED Lighting series White, Warm 2700K 11.2V 700mA 120° 1716 (4240 Metric)
Manufacturer Lumileds
Series LUXEON MZ
Package Reel - TR
Mounting Surface Mount
Package 1716 (4240 Metric)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.40.2000
Other Part Number LMZ9-SW27-ND, 1416-1571-1, 1416-1571-6, 1416-1571-2
Quantity per package 500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 877772-LMZ9-SW27
Ultra Librarian 3D Model Ultra Librarian LMZ9-SW27 CAD Model

Description

The LUXEON MZ series from Lumileds is a high-quality optoelectronic component that is ideal for LED lighting applications.

  • Series: LUXEON MZ
  • Color: White and Warm Colors
  • Package: Reel
  • Maximum Current: 700mA
  • Viewing Angle: 120 degrees
  • Forward Voltage: 11.2V
  • CCT: 2700K
  • Package Quantity: 500
