Same model may have multiple batches, images only for reference.

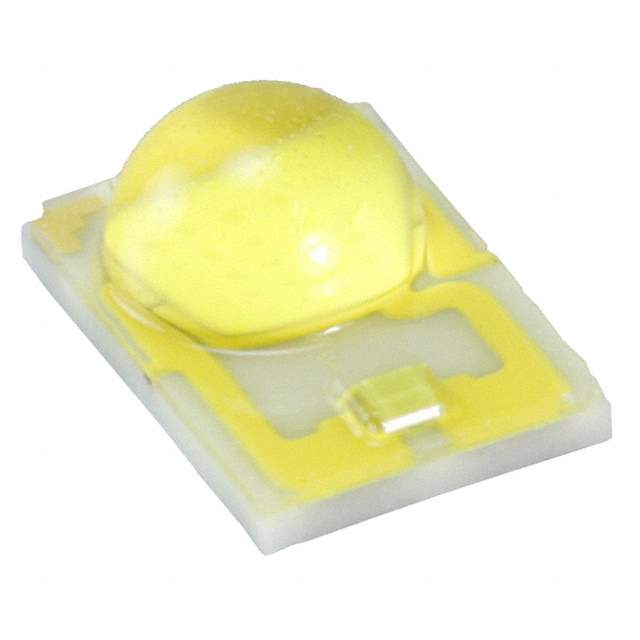

LXW9-PW27 Real Image
Same model may have multiple batches, images only for reference.

LXW9-PW27

Part No LXW9-PW27
Manufacturer Lumileds
Catalog LED Lighting - White
Description LED Uni-Color White 2700K 3-Pin T/R / LED LUXEON WARM WHITE 2700K 3SMD
Datasheet
LXW9-PW27 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Lumileds
Series LUXEON Rebel ES
Packaging Reel package
Part Status Obsolete(EOL)
Color White, Warm
CCT (K) 2700K
Flux @ 25°C, Current - Test 135 lm (Typ)
Current - Test 700mA
Voltage - Forward (Vf) (Typ) 2.9V
Lumens/Watt @ Current - Test 66 lm/W
CRI (Color Rendering Index) 90
Current - Max 1A
Viewing Angle 120°
Mounting SMD
Package 1812 (4532 Metric)
Dimension 0.177" L x 0.120" W (4.49mm x 3.05mm)
Height - Seated (Maximum) 0.083" (2.10mm)
Thermal Resistance of Package 6°C/W
Win Source Part Number 784794-LXW9-PW27
Popularity Medium
Supply and Demand Status Limited
Family Name LXW9-PW27
Introduction Date May 11, 2011
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian LXW9-PW27 CAD Model

Description

The Lumileds LXW9-PW27 is an electronic component with a 120-degree viewing angle.

  • Lumens/Watt: 66 lm/W @ current test
  • CRI: 90
  • Series: LUXEON Rebel ES
  • Package: 1812 (4532 Metric)
  • Mounting: SMD
  • Color: Warm White
  • CCT: 2700K
  • Flux: 135 lm (Typ) @ 25°C, current-test
  • Status: Obsolete (EOL)
  • Supply and Demand Status: Limited
  • Popularity: Medium
