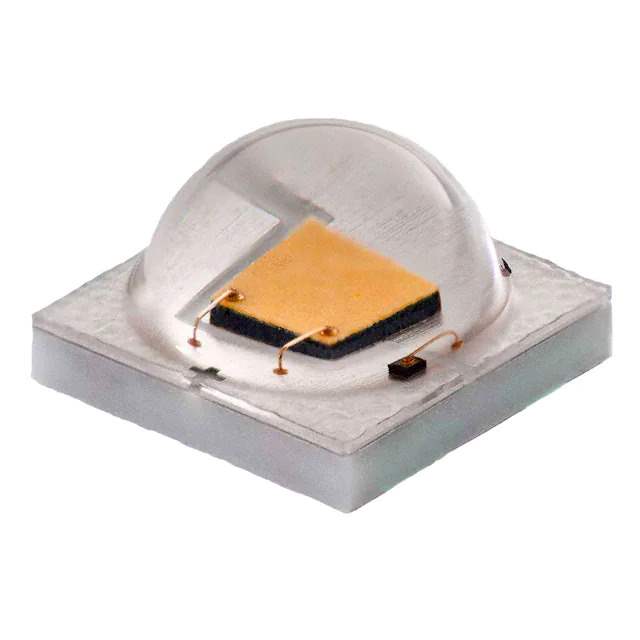

XPEBWT-L1-0000-00DF5

Name: XPEBWT-L1-0000-00DF5
Brand: CreeLED, Inc.
SKU: 904046
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	XPEBWT-L1-0000-00DF5
Manufacturer	CreeLED, Inc.
Catalog	LED Lighting - White
Description	LED XLAMP NEUTRAL WHT 4250K 2SMD / LED Lighting XLamp? XP-E2 White, Neutral 4250K 2.9V 350mA 110° 1414 (3535 Metric)
Datasheet	XPEBWT-L1-0000-00DF5 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics - White LED Lighting
Mfr	CreeLED, Inc.
Series	XLamp® XP-E2
Package	Tape & Reel
Product Status	Active
Color	White, Neutral
CCT (K)	4250K
Flux @ 85°C, Current - Test	111lm (107lm ~ 114lm)
Current - Test	350mA
Voltage - Forward (Vf) (Typ)	2.9V
Lumens/Watt @ Current - Test	109 lm/W
CRI (Color Rendering Index)	75 (Typ)
Current - Max	1A
Viewing Angle	110°
Mounting Type	Surface Mount
Package / Case	1414 (3535 Metric)
Size / Dimension	0.136" L x 0.136" W (3.45mm x 3.45mm)
Height - Seated (Max)	0.094" (2.39mm)
Thermal Resistance of Package	9°C/W
Base Product Number	XPEBWT
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Win Source Part Number	904046-XPEBWT-L1-0000-00DF5
Ultra Librarian 3D Model	Ultra Librarian XPEBWT-L1-0000-00DF5 CAD Model

Alternative Products

Description

The XLamp XP-E2 is a high-quality white LED lighting component manufactured by CreeLED, Inc.

Series: XLamp XP-E2
Maximum Current: 1A
Viewing Angle: 110°
Forward Voltage (Vf): 2.9V
Current Test: 350mA
Color Temperature (CCT): 4250K
Flux @ 85°C: 111lm
Lumens/Watt Rating @ Current Test: 109lm/W
Size: 0.136" L x 0.136" W (3.45mm x 3.45mm)
Seated Height: 0.094" (2.39mm)
Mounting Type: Surface Mountable
Standard Package: 1,000 pieces
Status: Active
Application: Optoelectronic
