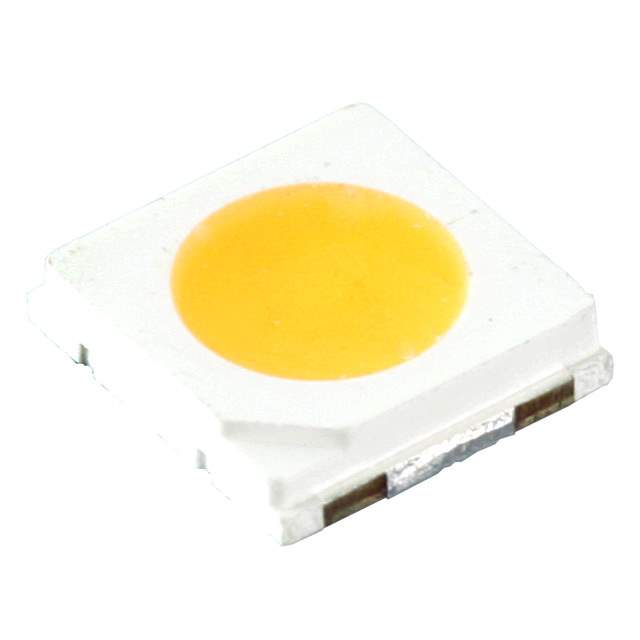

MXA8-PW50-0000 Real Image
Same model may have multiple batches, images only for reference.

MXA8-PW50-0000

Part No MXA8-PW50-0000
Manufacturer Lumileds
Catalog LED Lighting - White
Description LED LUXEON COOL WHITE 5000K 2SMD  /  LED Lighting series White, Cool 5000K 3.05V 100mA 115° 1414 (3535 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Lumileds
Series LUXEON 3535L
Package Tape & Reel
Color White, Cool
CCT (K) 5000K
Flux @ 25°C, Current - Test 42lm (Typ)
Current - Test 100mA
Voltage - Forward (Vf) (Typ) 3.05V
Lumens/Watt @ Current - Test 138 lm/W
CRI (Color Rendering Index) 80
Current - Max 200mA
Viewing Angle 115°
Mounting SMD (SMT)
Package / Case 1414 (3535 Metric)
Supplier Device Package 3535
Dimension 0.138" L x 0.134" W (3.50mm x 3.40mm)
Height - Seated (Max) 0.031" (0.80mm)
Thermal Resistance of Package 18°C/W
Base Product Number MXA8-PW50
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 1416-1096-6,1416-1096-2,1416-1096-1
Standard Package 5,000
Win Source Part Number 983333-MXA8-PW50-0000
Ultra Librarian 3D Model Ultra Librarian MXA8-PW50-0000 CAD Model

Description

The LUXEON 3535L white cool LED lighting component from Lumileds comes with a viewing angle of 115 degrees and a forward voltage of 3.05V.

  • Viewing Angle: 115 degrees
  • Forward Voltage: 3.05V
  • Thermal Resistance: 18 degrees Celsius per watt
  • Mounting: SMD (SMT) technology
  • Package Size: 3535 metric size
  • Applications: Optoelectronics
  • CCT: 5000K
  • CRI: 80
  • Luminous Flux: 42lm (typ) @ 25 degrees Celsius
  • Current Test: 100mA
  • Height: 0.031 inches (0.80mm)
  • Package: Tape and reel
  • Maximum Current: 200mA
  • Lumens per Watt: 138 lm/W
