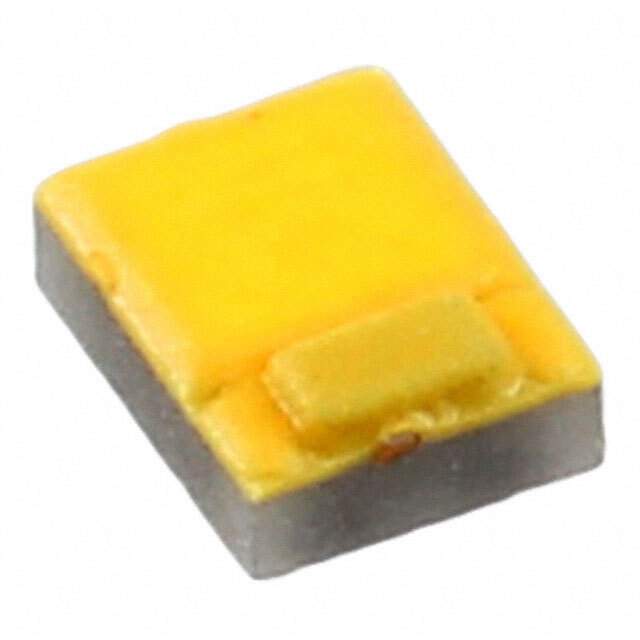

LXZ1-3080-5 Real Image
Same model may have multiple batches, images only for reference.

LXZ1-3080-5

Part No LXZ1-3080-5
Manufacturer Lumileds
Catalog LED Lighting - White
Description LED LUXEON WARM WHITE 3000K 2SMD / LED Lighting series White, Warm 3000K 5-Step MacAdam Ellipse 2.8V 500mA 120° 0705 (1713 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Lumileds
Series LUXEON Z
Package Tape & Reel
Color White, Warm
CCT (K) 3000K 5-Step MacAdam Ellipse
Flux @ 85°C, Current - Test 124lm (Typ)
Current - Test 500mA
Voltage - Forward (Vf) (Typ) 2.8V
Lumens/Watt @ Current - Test 89 lm/W
CRI (Color Rendering Index) 80
Current - Max 1A
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 0705 (1713 Metric)
Supplier Device Package SMD
Dimension 0.067" L x 0.051" W (1.70mm x 1.30mm)
Height - Seated (Max) 0.031" (0.79mm)
Thermal Resistance of Package 3°C/W
Base Product Number LXZ1-3080
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 1416-1141-6,LXZ1-3080-5-ND,1416-1141-1,1416-1141-2
Standard Package 2,000
Win Source Part Number 1073266-LXZ1-3080-5
Ultra Librarian 3D Model Ultra Librarian LXZ1-3080-5 CAD Model

Description

The LUXEON Z is a high-performance LED lighting product in the Optoelectronics category that is available in white and warm colors.

  • Package: Tape & Reel
  • Height: 0.031" (0.79mm)
  • Maximum Current: 1A
  • Viewing Angle: 120°
  • Voltage-Forward (Vf) (Typ): 2.8V
  • Current-Test: 500mA
  • CCT (K): 3000K 5-Step MacAdam Ellipse
  • Flux @ 85°C, Current-Test: 124lm (Typ)
  • Thermal Resistance of Package: 3°C/W
  • Package/Case: 0705 (1713 Metric)
  • Mounting Type: SMD (SMT)
  • Supplier Device Package: SMD
  • Dimension: 0.067" L x 0.051" W (1.70mm x 1.30mm)
