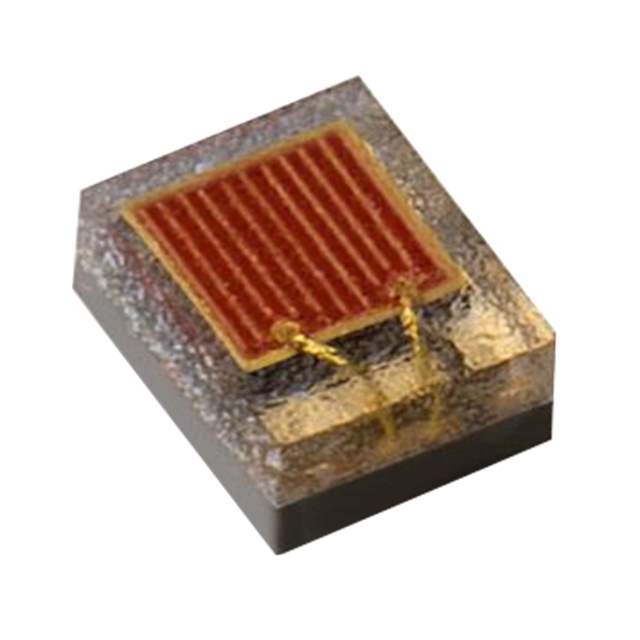

LXZ1-PD01 Real Image
Same model may have multiple batches, images only for reference.

LXZ1-PD01

Part No LXZ1-PD01
Manufacturer Lumileds
Catalog LED Lighting - Color
Description LED LUXEON Z RED 633NM 2MSD
Datasheet
LXZ1-PD01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Estimated Pruduction Lead Time 7 Weeks
Features LED Lighting Color series Red 633nm (620nm ~ 645nm) 0705 (1713 Metric)
Manufacturer Lumileds
Series LUXEON Z
Package Reel - TR
Mounting Surface Mount
Package 0705 (1713 Metric)
Case / Package SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.40.2000
Other Part Number 1417-1053-6, 1416-1053-6, 1417-1053-2, 1416-1053-2, 1417-1053-6-ND, 1416-1053-1, 1417-1053-1, 1417-1053-2-ND, 1417-1053-1-ND
Quantity per package 2000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 880410-LXZ1-PD01
Ultra Librarian 3D Model Ultra Librarian LXZ1-PD01 CAD Model

Description

The Lumileds LUXEON Z series LED lighting color is a red 633nm (620nm ~ 645nm) 0705 (1713 Metric) surface mount LED with a reel - TR package.

  • Color: Red 633nm (620nm ~ 645nm)
  • Package: 0705 (1713 Metric)
  • Mounting: Surface Mount
  • Package Type: Reel - TR
  • Category: Optoelectronics
  • Case/Package: SMD
  • ECCN: EAR99
  • Popularity: Medium
  • Supply and Demand Status: limited
  • Quantity per Package: 2000
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 7 weeks
  • REACH Status: REACH unaffected
  • HTSUS: 8541.40.2000
  • Other Part Numbers: 1417-1053-6, 1416-1053-6, 1417-1053-2, 1416-1053-2, 1417-1053-6-ND, 1416-1053-1, 1417-1053-1, 1417-1053-2-ND, and 1417-1053-1-ND
