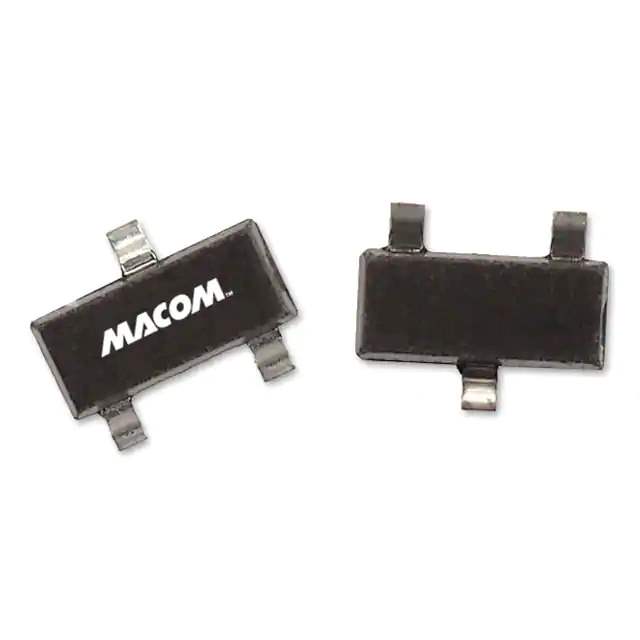

MA4E1339B1-287T

Part No MA4E1339B1-287T
Manufacturer M/A-Com Technology Solutions
Catalog RF Diodes
Description SCHOTTKY PLASTIC LEAD-FREE
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - RF Diodes
Mfr M/A-Com Technology Solutions
Series MA4E1339
Package Tape & Reel
Product Status Active
Diode Type Schottky - 1 Pair Series Connection
Voltage - Peak Reverse (Max) 20V
Current - Max 30 mA
Capacitance @ Vr, F 1.2pF @ 0V, 1MHz
Power Dissipation (Max) 250 mW
Temperature Range - Operating -55°C ~ 125°C (TJ)
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23
Base Product Number MA4E1339
Standard Package 3,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 206700-MA4E1339B1-287T
Ultra Librarian 3D Model Ultra Librarian MA4E1339B1-287T CAD Model

Description

MA4E1339B1-287T from M/A-Com Technology Solutions is an RF diode intended for use in high-frequency electronic designs where signal control, detection, switching, or protection functions may be required. Components in this category are commonly evaluated for RF front ends, wireless infrastructure, test equipment, radar-related assemblies, and other communication systems that demand dependable microwave performance. For engineering teams, this part is positioned as a specialized RF building block from a recognized supplier in the RF and microwave market, making it relevant for both new design assessment and sustaining legacy platforms. The current lifecycle status for MA4E1339B1-287T is information not available, so buyers should confirm ongoing production status directly with the manufacturer or authorized sources before locking it into long-term programs. RoHS compliance information is also not available in the provided data, and engineers should verify the latest environmental compliance documentation, datasheet, and material declarations before procurement or qualification.
