Same model may have multiple batches, images only for reference.

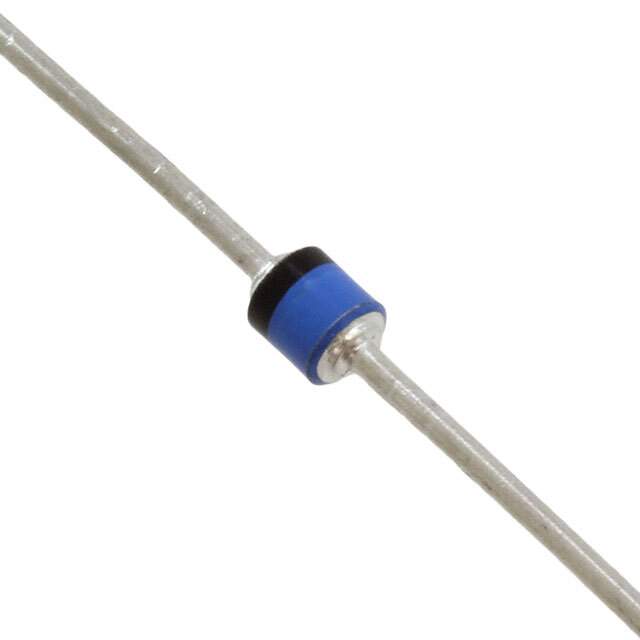

MA4P1200NM-401T Real Image
Same model may have multiple batches, images only for reference.

MA4P1200NM-401T

Part No MA4P1200NM-401T
Manufacturer M/A-Com Technology Solutions
Catalog RF Diodes
Description RF DIODE PIN 100V 1.5W AXIAL / RF Diode PIN - Single 100V 1.5 W Axial
Datasheet
MA4P1200NM-401T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - RF
Mfr MACOM Technology Solutions
Package Tape & Reel (TR),Cut Tape (CT)
Diode Type PIN - Single
Voltage - Peak Reverse (Max) 100V
Capacitance @ Vr, F 1.5pF @ 50V, 1MHz
Resistance @ If, F 750mOhm @ 50mA, 100MHz
Power Dissipation (Max) 1.5 W
Temperature Range - Operating -55°C ~ 175°C (TJ)
Package / Case Axial
Supplier Device Package Axial
Base Product Number MA4P1200
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0060
Other Names 1465-1223-6,1465-1223-6INACTIVE,1465-1223-6-ND,1465-1223-1,1465-1223-2,Q8145506
Standard Package 1,000
Win Source Part Number 1211804-MA4P1200NM-401T
Ultra Librarian 3D Model Ultra Librarian MA4P1200NM-401T CAD Model

Description

The M/A-Com Technology Solutions MA4P1200NM-401T is a PIN - Single type diode designed for use in RF discrete semiconductor products.

  • Type: PIN - Single
  • Capacitance: 1.5pF @ 50V, 1MHz
  • Peak Reverse Voltage: 100V
  • Power Dissipation: 1.5 W
  • Resistance: 750mOhm @ 50mA, 100MHz
  • Package: Axial
  • Operating Temperature: -55°C to 175°C (TJ)
  • Alternative: MA4P1200NM401T
