Same model may have multiple batches, images only for reference.

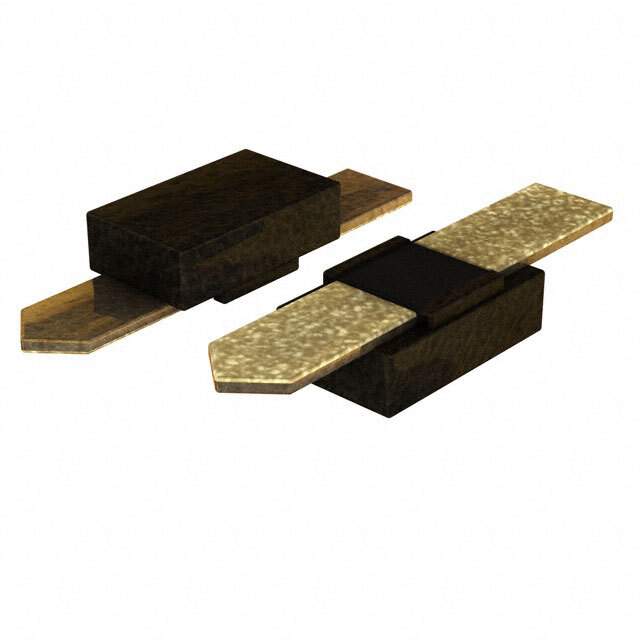

MA4PBL027 Real Image
Same model may have multiple batches, images only for reference.

MA4PBL027

Part No MA4PBL027
Manufacturer M/A-Com Technology Solutions
Catalog RF Diodes
Description HMICTM Silicon Beam-Lead PIN Diodes | RF DIODE PIN 90V 150MW
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer M/A-Com Technology Solutions
Packaging Bulk
Diode Type PIN - Single
Voltage - Peak Reverse (Maximum) 90V
Current - Max 100mA
Capacitance at Vr, F 30pF at 5V, 10GHz
Resistance at If, F 4.9Ohm at 20mA, 10GHz
Power Dissipation (Maximum) 150mW
Temperature Range - Operating 175°C
Manufacturer Package 2-SMD
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 1211457-MA4PBL027
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MA4PBL027 CAD Model

Description

The MA4PBL027 from M/A-Com Technology Solutions is a PIN-single diode with a maximum power dissipation of 150mW and a peak reverse voltage of 90V.

  • Power Dissipation: 150mW
  • Peak Reverse Voltage: 90V
  • Capacitance: 30pF @ 5V, 10GHz
  • Resistance: 4.9Ohm @ 20mA, 10GHz
  • Package: 2-SMD
  • Manufacturer Pack Quantity: 100
  • Maximum Current: 100mA
  • Temperature Range: 175°C
