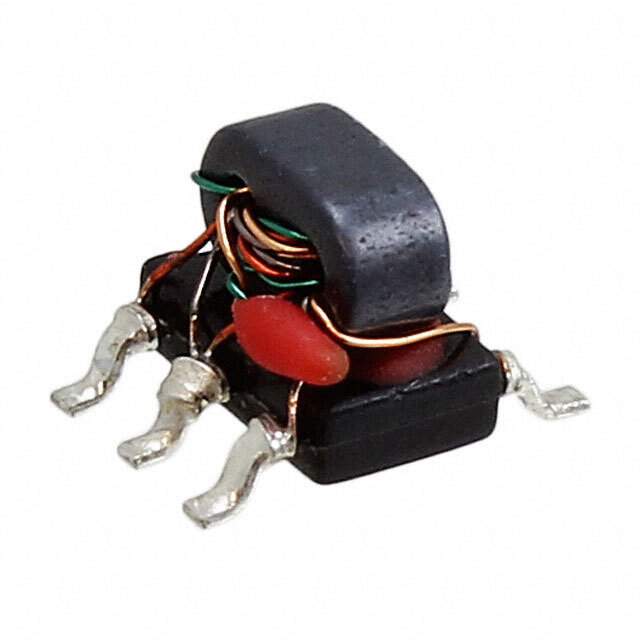

MABA-011032 Real Image
Same model may have multiple batches, images only for reference.

MABA-011032

Part No MABA-011032
Manufacturer M/A-Com Technology Solutions
Catalog Balun
Description Transformer, 1:3 40 MHz - 1000MHz
Datasheet
MABA-011032 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer M/A-Com Technology Solutions
Packaging Reel - TR
Frequency Range 40MHz ~ 1GHz
Impedance - Unbalanced/Balanced 75 / 225 Ohm
Phase Difference 22°
Insertion Loss (Maximum) 3.2dB
Return Loss (Minimum) -17dB
Package 6-SMD (5 Leads), Gull Wing
Mounting SMD
Win Source Part Number 1211605-MABA-011032
Manufacturer Homepage www.macomtech.com
Family Name MABA-0110
Introduction Date July 03, 2014
ECCN EAR99
Estimated EOL Date 2029
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MABA-011032 CAD Model

Description

The MABA-0110 series is a 6-SMD (5 Leads), Gull Wing packaged RF/IF and RFID component from M/A-Com Technology Solutions.

  • Frequency Range: 40MHz to 1GHz
  • Impedance: 75/225 Ohm (Unbalanced/Balanced)
  • Phase Difference: 22 degrees
  • Insertion Loss (maximum): 3.2dB
  • Return Loss (minimum): -17dB
  • Ideal for: A wide range of applications, including wireless infrastructure, satellite communications, and test and measurement equipment.
  • Packaging: Reel
  • Estimated EOL date: 2029
