Same model may have multiple batches, images only for reference.

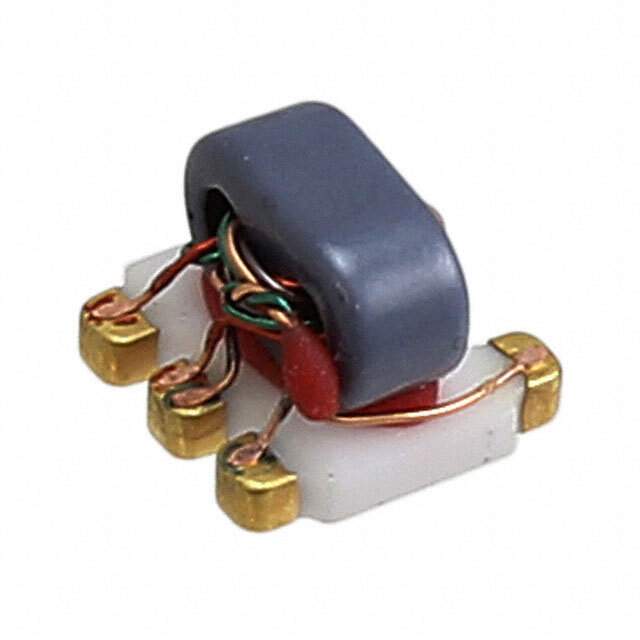

MABAES0060 Real Image
Same model may have multiple batches, images only for reference.

MABAES0060

Part No MABAES0060
Manufacturer M/A-Com Technology Solutions
Catalog Balun
Description 1:1 FLUX COUPLED TRANS .3-200MHZ
Datasheet
MABAES0060 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer M/A-Com Technology Solutions
Packaging Reel - TR
Status Active
Frequency Range 300kHz to 200MHz
Insertion Loss (Max) 1.5dB
Return Loss (Min) 10dB
Mounting Surface Mount
Win Source Part Number 073215-MABAES0060
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MABAES0060 CAD Model

Description

The M/A-Com Technology Solutions MABAES0060 (Win Source Part Number: 073215) is an active RF/IF and RFID component that is designed for use in various electronic devices.

  • Win Source Part Number: 073215
  • Component Type: RF/IF and RFID
  • Status: Active
  • Frequency Range: 300kHz to 200MHz
  • Insertion Loss (Max): 1.5dB
  • Return Loss (Min): 10dB
  • Mounting: Surface mount
  • Popularity: Medium popularity
  • Supply and Demand Status: Sufficient
