Same model may have multiple batches, images only for reference.

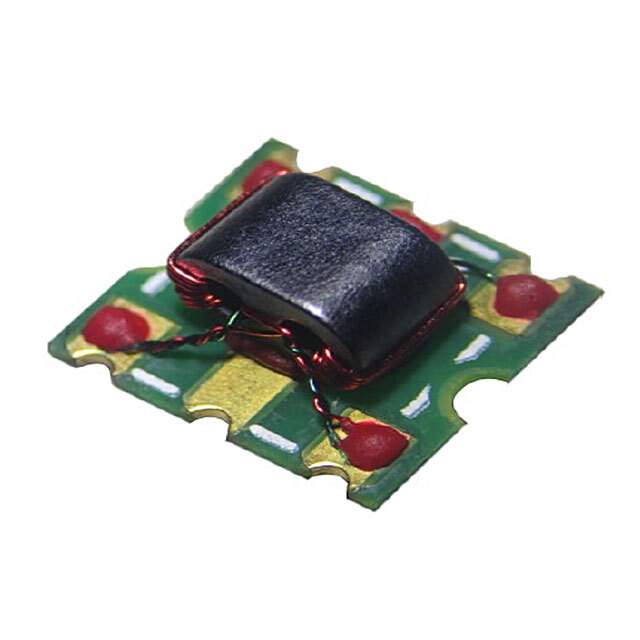

MACP-010414-CA0370 Real Image
Same model may have multiple batches, images only for reference.

MACP-010414-CA0370

Part No MACP-010414-CA0370
Manufacturer M/A-Com Technology Solutions
Catalog RF Directional Coupler
Description COUPLER 5-1200MHZ 10DB SMT FR4
Datasheet
MACP-010414-CA0370 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer M/A-Com Technology Solutions
Packaging Reel - TR
Status Active
Coupler Type Standard
Frequency 5MHz to 1.2GHz
Coupling Factor 10dB
Applications General Purpose
Maximum Power Dissipation 250mW
Return Loss 27dB
Case / Package 6-SMD
Win Source Part Number 021071-MACP-010414-CA0370
Ultra Librarian 3D Model Ultra Librarian MACP-010414-CA0370 CAD Model

Description

The M/A-Com Technology Solutions coupler is a standard coupler type that is suitable for general purpose applications.

  • Coupler Type: Standard
  • Frequency Range: 5MHz to 1.2GHz
  • Coupling Factor: 10dB
  • Return Loss: 27dB
  • Maximum Power Dissipation: 250mW
  • Package: 6-SMD case
  • Category: RF/IF and RFID
  • Status: Currently active
  • Packaging: Reel - TR
