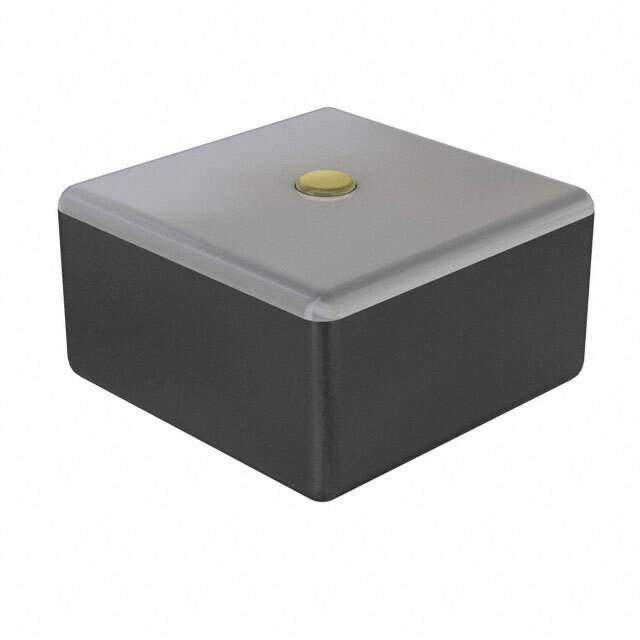

MMP7066-11 Real Image
Same model may have multiple batches, images only for reference.

MMP7066-11

Part No MMP7066-11
Manufacturer M/A-Com Technology Solutions
Catalog RF Diodes
Description DIE, DIODE, PIN  /  RF Diode PIN - Single 500V 150 mA Die
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - RF
Mfr MACOM Technology Solutions
Package Tray
Diode Type PIN - Single
Voltage - Peak Reverse (Max) 500V
Current - Max 150 mA
Capacitance @ Vr, F 0.1pF @ 100V, 1MHz
Resistance @ If, F 15Ohm @ 1mA, 100MHz
Temperature Range - Operating 175°C (TJ)
Package / Case Die
Supplier Device Package Die
Base Product Number MMP7066
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0070
Other Names 1465-MMP7066-11
Standard Package 400
Win Source Part Number 1181105-MMP7066-11
Ultra Librarian 3D Model Ultra Librarian MMP7066-11 CAD Model

Description

The MMP7066-11 is a PIN diode designed for RF applications.

  • Maximum Current Rating: 150mA
  • Peak Reverse Voltage: 500V
  • Capacitance @ 100V and 1MHz: 0.1pF
  • Resistance @ 1mA and 100MHz: 15 Ohms
  • Package: Die
  • Operating Temperature: 175°C
