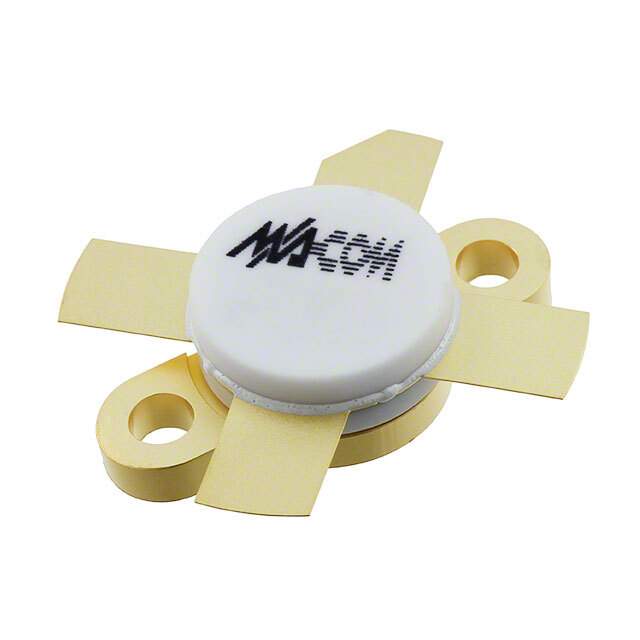

MRF422 Real Image
Same model may have multiple batches, images only for reference.

MRF422

Part No MRF422
Manufacturer M/A-Com Technology Solutions
Catalog Transistors - FETs, MOSFETs - RF
Description TRANS RF NPN 35V 20A 211-11 / Trans RF BJT NPN 40V 20A 4-Pin Case 211-11
Datasheet
MRF422 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer M/A-Com Technology Solutions
Packaging Tray
Transistor Type NPN
Voltage - Collector Emitter Breakdown (Maximum) 35V
Gain 13dB
Power - Max 150W
DC Current Gain (hFE) (Minimum) @ Ic, Vce 15 @ 5A, 5V
Current - Collector (Ic) (Maximum) 20A
Mounting Chassis Mount
Package 211-11, Style 2
Manufacturer Package 211-11, Style 2
Win Source Part Number 789420-MRF422
Popularity Medium
Supply and Demand Status Limited
Family Name MRF422
Introduction Date May 06, 2009
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian MRF422 CAD Model

Description

The MRF422 is an NPN transistor with a maximum power of 150W and a gain of 13dB.

  • Mounting Type: Chassis
  • Maximum Collector Current: 20A
  • Maximum Collector-Emitter Voltage: 35V
  • Minimum DC Current Gain: 15 @ 5A, 5V
  • Discrete Semiconductor Products: Yes
  • Packaging: Tray
  • Introduction Date: May 06, 2009
  • Estimated EOL Date: 2027
  • Cross-Reference: MS1202, SD1019, 2N5643, SD1013
