Same model may have multiple batches, images only for reference.

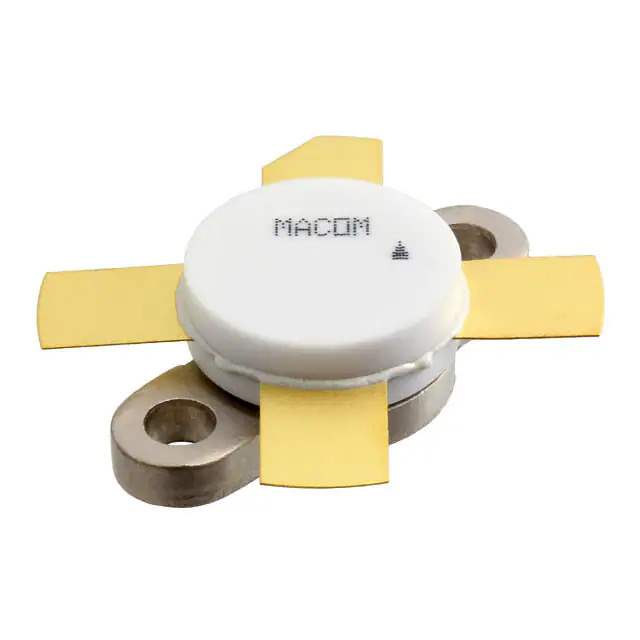

MRF454 Real Image
Same model may have multiple batches, images only for reference.

MRF454

Part No MRF454
Manufacturer M/A-Com Technology Solutions
Catalog RF Transistors (BJT)
Description RF TRANS NPN 18V 211-11 / RF Transistor NPN 18V 20A 80W Chassis Mount 211-11, Style 2
Datasheet
MRF454 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Bipolar RF Transistors
Mfr M/A-Com Technology Solutions
Package Tray
Product Status Active
Transistor Type NPN
Voltage - Collector Emitter Breakdown (Max) 18V
Gain 12dB
Power - Max 80W
DC Current Gain (hFE) (Min) @ Ic, Vce 40 @ 5A, 5V
Current - Collector (Ic) (Max) 20A
Mounting Type Chassis Mount
Package / Case 211-11, Style 2
Supplier Device Package 211-11, Style 2
Standard Package 20 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 928068-MRF454
Ultra Librarian 3D Model Ultra Librarian MRF454 CAD Model

Description

The MRF454 is a bipolar RF transistor designed for high-power applications.

  • Transistor Type: NPN
  • Maximum Power Rating: 80W
  • Maximum Collector-Emitter Breakdown Voltage: 18V
  • Maximum Collector Current: 20A
  • Gain: 12dB
  • Application: high power amplification in RF circuits
  • Mounting Type: chassis mount
  • Package: 211-11, Style 2
  • Manufacturer: M/A-Com Technology Solutions
  • Series: MRF454
  • Packaging: tray
  • Market Status: active
