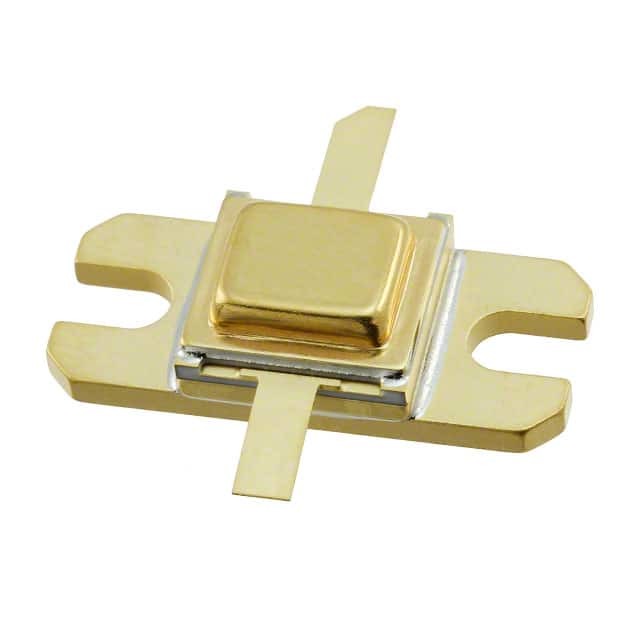

Same model may have multiple batches, images only for reference.
PH1090-75L
Same model may have multiple batches, images only for reference.

PH1090-75L

Part No PH1090-75L
Manufacturer M/A-Com Technology Solutions
Catalog RF Transistors (BJT)
Description RF TRANS NPN 70V / RF Transistor NPN 70V 6A 75W Chassis Mount
Datasheet
PH1090-75L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Bipolar RF Transistors
Mfr M/A-Com Technology Solutions
Package Tray
Product Status Active
Transistor Type NPN
Voltage - Collector Emitter Breakdown (Max) 70V
Gain 10.70dB ~ 10.81dB
Power - Max 75W
Current - Collector (Ic) (Max) 6A
Temperature Range - Operating 200°C (TJ)
Mounting Type Chassis Mount
Base Product Number PH1090
Standard Package 20 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0040
Win Source Part Number 930330-PH1090-75L
Ultra Librarian 3D Model Ultra Librarian PH1090-75L CAD Model

Description

The bipolar RF transistor, part number 930330-PH1090-75L, is a high-power NPN transistor designed for discrete semiconductor applications.

  • Power Rating: 75W
  • Collector-Emitter Breakdown Voltage: 70V
  • Maximum Collector Current: 6A
  • Package: Tray package
  • Operating Temperature: Up to 200°C
  • Manufacturer: M/A-Com Technology Solutions
  • Standard Package: 20 pieces
  • Product Status: Active product
