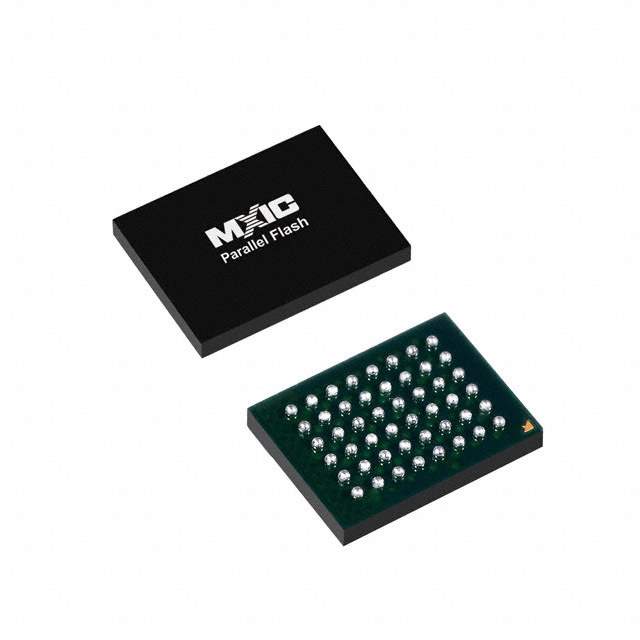

MX29LV160DTXEI-70G Real Image
Same model may have multiple batches, images only for reference.

MX29LV160DTXEI-70G

Part No MX29LV160DTXEI-70G
Manufacturer Macronix
Catalog Flash
Description IC FLASH 16M PARALLEL 48LFBGA / Byte/Word mode switchable - 2,097,152 x8 / 1,048,576 x16
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Macronix
Packaging Tray
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 16Mb (2M x 8)
Memory Interface Parallel
Write Cycle Time - Word, Page 70ns
Access Time 70ns
Supply Voltage (V) 2.7V ~ 3.6V
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 48-LFBGA, CSPBGA
Supplier Device Package 48-LFBGA, CSP (6x8)
Manufacturer Pack Quantity 480
MSL Level 3 (168 Hours)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810652-MX29LV160DTXEI-70G
Ultra Librarian 3D Model Ultra Librarian MX29LV160DTXEI-70G CAD Model

Description

The MX29LV160DTXEI-70G is a 16Mb (2M x 8) non-volatile FLASH-NOR memory IC from Macronix.

  • Memory Interface: Parallel
  • Access Time: 70ns
  • Memory Format: FLASH
  • Write Cycle Time (Word/Page): 70ns
  • Package: SMD 48-LFBGA, CSP (6x8)
  • Temperature Range: -40°C to 85°C
  • Suitable for: Automotive, industrial, and consumer electronics
