Maxim Integrated DS1669S-100 Digital Potentiometer

The DS1669S-100 is a versatile digital potentiometer designed by Maxim Integrated, offering a unique solution for adjusting and controlling resistance in a wide array of applications. This electronic component is engineered to replicate the functionality of a mechanical potentiometer, yet it provides enhanced reliability, precision, and integration capabilities that are ideal for modern electronic systems.

Key Features:

• Resistance Range: The DS1669S-100 has a total resistance of 100 kΩ, which can be adjusted through digital inputs to suit various circuit requirements.
• Wiper Settings: It offers 100 wiper positions, allowing for fine-grained control over the resistance settings.
• Non-Volatile Memory: The device includes non-volatile (NV) memory that retains the wiper position even after power is removed, ensuring consistent performance across power cycles.
• Interface: It utilizes a simple up/down interface for wiper control, which can be driven by a wide range of signals, making it easy to integrate into different systems.
• Supply Voltage: The DS1669S-100 operates over a supply voltage range of 4.5V to 5.5V, compatible with standard logic levels.

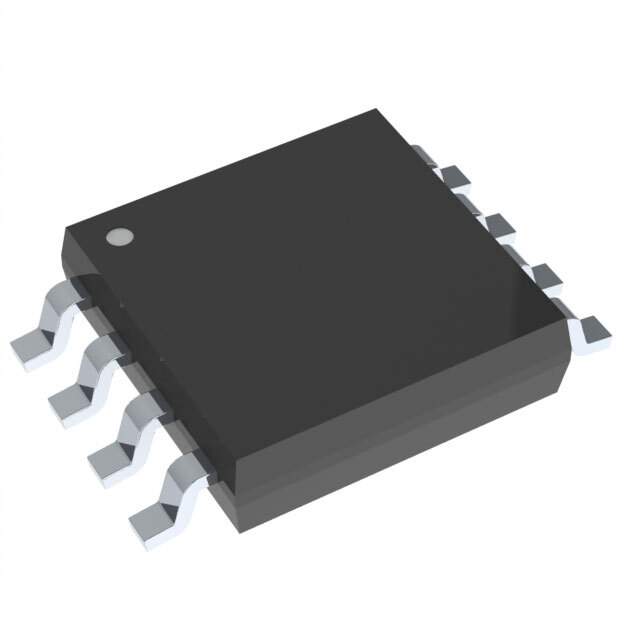

• Packaging: This digital potentiometer comes in a compact SOIC-8 package, making it suitable for space-constrained applications.

Applications:

The DS1669S-100 is a highly adaptable component that can be used in a variety of applications, including:

• Volume control in audio systems
• Brightness adjustment in lighting systems
• Adjustable power supplies
• Calibration and tuning systems
• Automotive electronics

Conclusion:

Maxim Integrated's DS1669S-100 is a sophisticated digital potentiometer that offers electronic designers a reliable and precise alternative to mechanical potentiometers. With its non-volatile memory, simple interface, and compact form factor, it is an excellent choice for a myriad of applications that require variable resistance settings. Integrating the DS1669S-100 into your design will enhance its functionality and reliability, making it an essential component for modern electronics.
